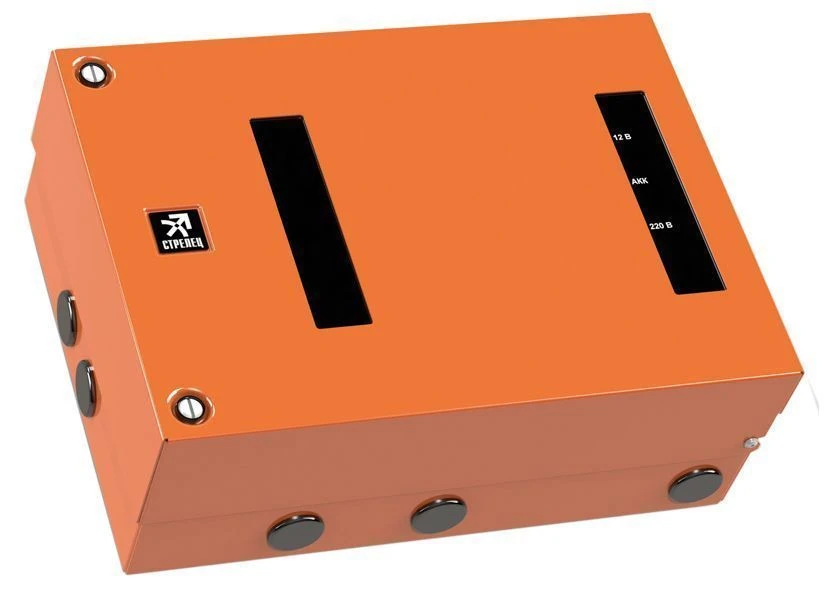

Site station Sagittarius-Monitoring version 2

Station objectovaya izp.2, which is part of the radio system of notification transmission, is designed to transmit notifications from the object security and fire equipment to the console station installed at the centralised surveillance console. The stations use radio modems for information exchange in the RSPI. The operating frequency is set according to the frequency grid with a step of 6.25 kHz. The speed of information transmission between receiving and transmitting stations is programmable from 1.2 to 9.6 kbps. The radio transmitting paths are designed to use an antenna-feeder path with an impedance of 50 ohms. Signal interfaces used in the OS to connect the object equipment or programming parameters:- S2 interface of the integrated security system "Strelets-Integral";- RS-232 interface;- USB interface;- Control input module interface (MVK-RS).Operating range 220V/50 Hz - from 176 V to 253 V. Overall dimensions - 341×250×130 mm. Weight - no more than 3.8 kg, excluding the battery.
