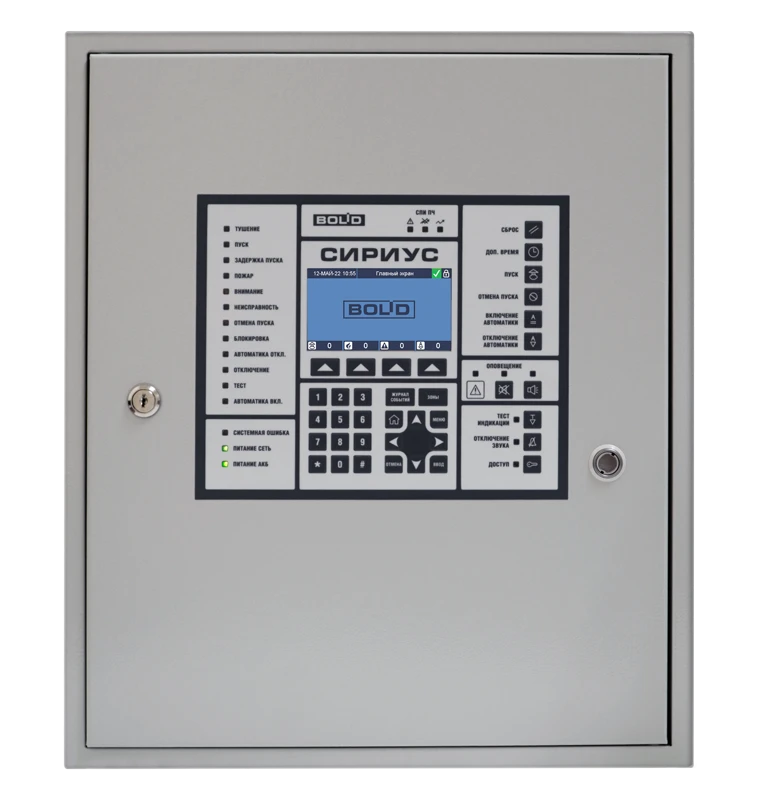

Sirius fire control and monitoring device ATSDR.425533.006

Security and Fire Control Panels

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Designed to work in fire automation systems and fulfil the functions of:
- fire control panel in fire alarm systems;
- fire control device in the system of light and/or sound notification and evacuation control in case of fire;
- control panel as part of block-modular fire control devices for gas, powder, aerosol fire extinguishing, fine spray water extinguishing, water and foam fire extinguishing, sprinklers with forced start and/or trigger control, voice alarms, smoke ventilation, engineering, technological equipment and other devices involved in ensuring fire safety.

Technical Specifications

Basic nutrition	Mains ~220V, frequency 50/60 Hz
Maximum current consumed from the main power supply in standby mode	not more than 0,03 A
Maximum current consumed from the main power supply in alarm mode	own consumption - not more than 0.03 A; DUT consumption - not more than 0.33 A
Maximum current consumed from the main power supply for battery charging	Not more than 0,13 A
Backup power supply	Two 12 V 17A?h capacity 17A?h batteries in series.
Maximum current consumed from the backup power supply in standby mode	Not more than 0.3 A
Maximum current consumed from the backup power supply in alarm mode	own consumption - not more than 0.3 A; DUT consumption - not more than 3 A
Maximum information capacity of the device	Built-in devices - 4; external devices - 122; inputs (controlled elements) - 4096; outputs (controlled elements) - 1024; zones (for combining elements) - 1024; zone groups (for combining zones) - 128; users - 2048; access groups - 256; zones op
Number of fire extinguishing zones (directions)	one Sirius device 4; with S2000-PT units up to 127
Number of events stored in the event log	65000 pc
Communication line interface for connection of addressable devices	DPLS
Number of communication lines for connection of addressable devices	127 (254 with additional module "S2000-KDL-S")
Maximum number of addressable devices	127 (254 with additional module "S2000-KDL-S")
Maximum length of redundant communication line for connection of external units, RS-485 interface	3000 m
Maximum length of redundant communication line for networking Sirius devices, RS-485 interface	3000 m
Maximum number of Sirius devices in the network	32 pc
Integrated controlled key (transistor) outputs	4 pc
Integrated controlled dry contact outputs	3 pc
Built-in controlled output for powering external devices	1 pc
Built-in discrete input "Fault"	1 pc
Operating temperature range	0 to +40 °C
Overall dimensions of the device	Not more than 500×425×110 mm
Instrument weight	Not more than 6.5kg (without AB); not more than 16kg (with AB)
Average lifetime of the device	10 a
