Single span overhead suspension cranes

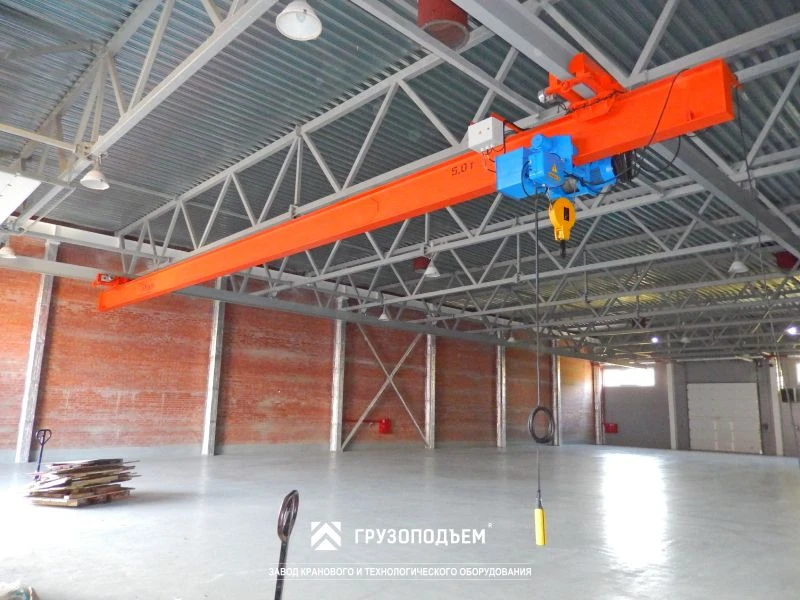

Suspended overhead travelling crane is used to move cargo on the territory of the production area or warehousing. The design is a load-bearing I-beam fixed to the lower flanges of the crane track. Thanks to the lower attachment, suspension cranes can serve the largest possible area of the premises, including the space along the walls. They are considered to be universal production or storage equipment. To increase the value of the maximum permissible span length, additional rails are used in the centre of the crane span, on which an additional endcarriage is placed. Main characteristics: g / n from 0.5 to 16.0 tonnes, span length from 2.0 to 15.0 m, type of drive for movement: manual / electric, lifting height up to 36.0 m, mode of operation according to ISO 4301/1: A3 and above, the degree of protection of crane movement mechanisms: IP 54, crane version: OPI / PBI / VZI. By default the equipment is painted in orange colour RAL 2004. Other colours available on request.
