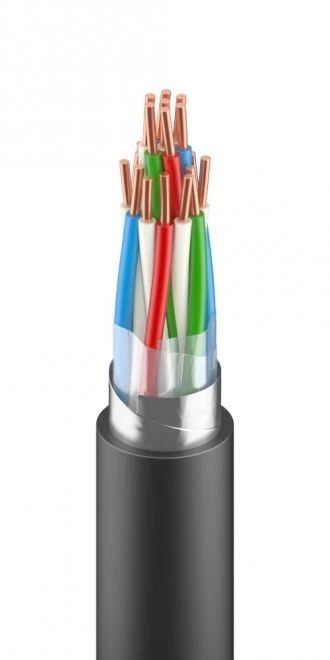

Signal and Locking Cable SBVGE with PE Insulation

Available for Import

Signal and Locking Cable SBVGE with Polyethylene Insulation for Secure Applications

Signal Interlocking Cables

Manufacturer: REЖКАБЕЛЬ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Cable for signalling and interlocking, not spreading combustion, with low smoke and gas emission, grade: ????????(?)-LS Cable for signalling and interlocking with polyethylene insulation in plastic sheath, mark SBVGEng(A)

Description

Cable signal-blocking with copper conductive cores with diameter from 0,8 to 1,0 mm, with the number of cores and pairs from 2 to 42, with insulation made of polyethylene, with a screen made of alumoflex in a sheath made of polyvinylchloride plasticate. Cable for signalling and interlocking are designed for electrical installations of railway signalling, centralisation and interlocking, fire alarm and automation, for rated voltage 380 V AC 50 Hz or 700 V DC.

Specifications

Rated AC voltage

380 V

AC voltage test with nominal frequency of 50 Hz for 1 minute between cores

2500 V

Electrical insulation resistance of current-carrying conductors, recalculated per 1000 m length and temperature 20 C for cables

4000

Operating temperature range

-40...60 °C

Electrical insulation resistance of current-carrying conductors, recalculated for 1000 m of length and temperature 20 C for cabl

5000
