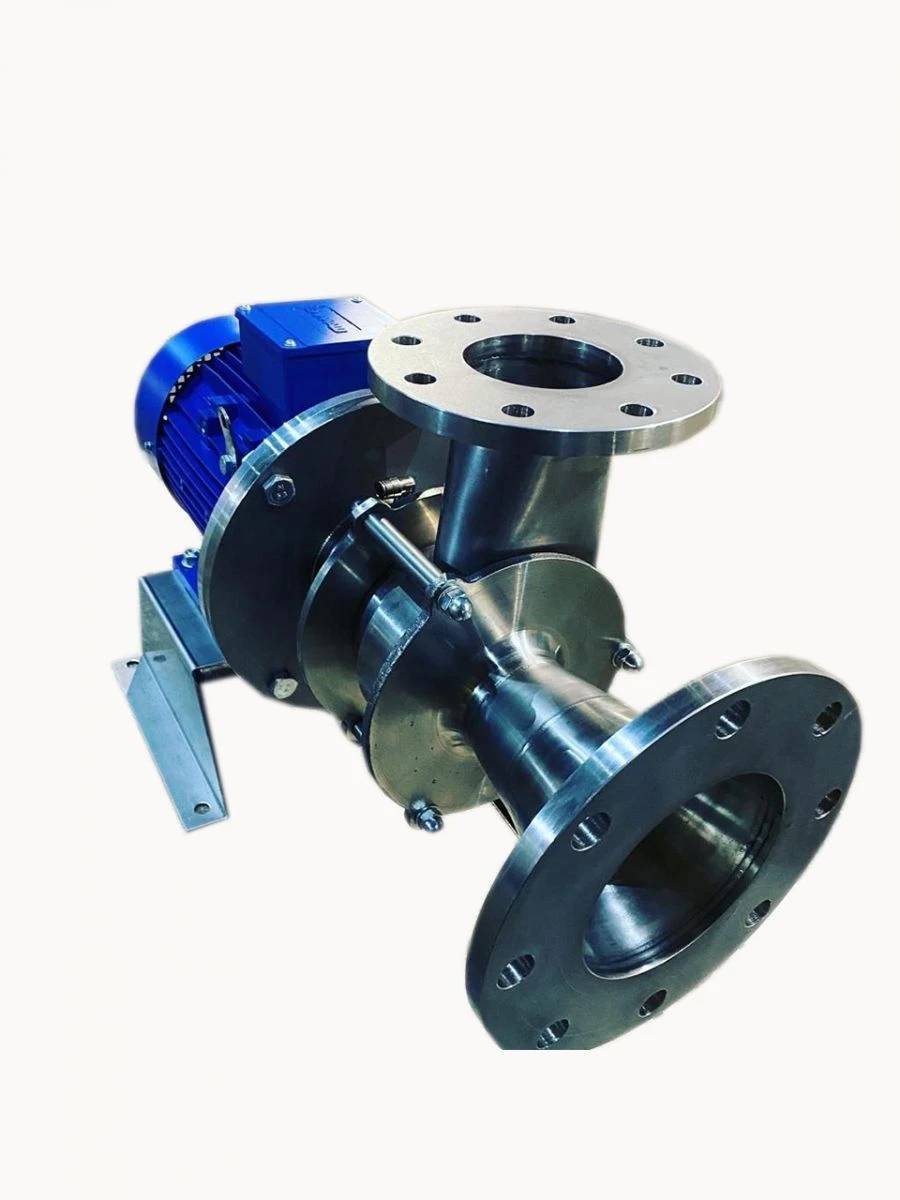

Sieva 40 centrifugal monobloc pump

Liquid Transfer Pumps

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Sieva 80 centrifugal monobloc pump

Description

Sieva 40 technical characteristics
Pump type centrifugal monobloc horizontal pump for vacuum evaporator plants
Impeller of open type
Impeller material stainless steel 18?25?19?2L
Material of working coverStainless steel 18?25?19?2L
Casing materialStainless steel 18?25?19?2L
Bracket material 08?18?10
Operating temperature, not more than, °?90
Capacity, not more, m.cu.hr40
Differential pressure at the outlet in the discharge pipe, not more than, m20
Created relative rarefaction in the suction branch pipe, not less than, bar0.6
Industrial electric motor 380V
Climatic executionU2 (according to GOST 15150-69)
Power, kW7,5
Electric motor speed, rpm3000
Inlet pipe coupling assembly DIN11851 DN150
Outlet pipe socket assembly DIN11851 DN100
Double mechanical seal "back to back".
Overall dimensions, max. mm
length710
width380
height430
Weight, not more, kg72
Additional equipment built-in cooling tank

Specifications

Operating temperature range 20...140 °C

Feeding 40

Designation Sieva 40

Climatic version ?4

Operating medium Condensate

Working pressure 0.2 MPa

Weight 72 kg

Pressure 0.2 m

Outlet pressure 0.2 MPa

Housing material stainless steel 18?25?19?2L
