Shut-off ball valves with nominal diameter DN 10-1200 mm, nominal pressure PN 0.6-50.0 MPa, collapsible and all-welded. So

Ball Valves

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

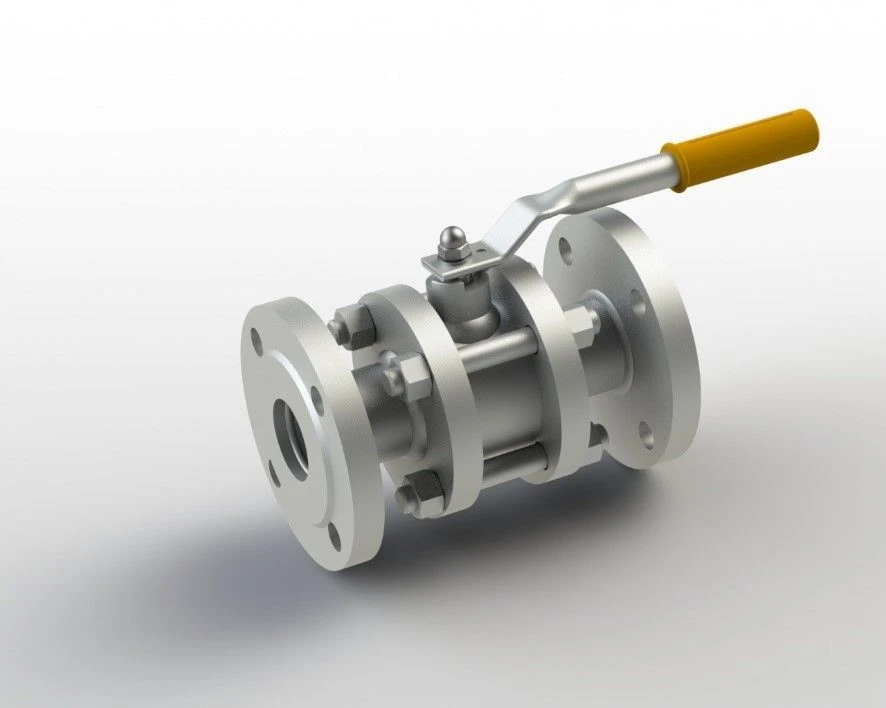

Shut-off ball valves with nominal diameter DN 10-1200 mm, nominal pressure PN 0.6-50.0 MPa, collapsible and all-welded. They meet the technical requirements of Rosneft Oil Company. They are intended for installation as shut-off devices on process pipelines and process equipment of oil and gas processing, oil production, petrochemical, gas industries; steam and hot water pipelines, in heat networks; in gas supply and fire-fighting systems.

Technical Specifications

Nominal diameter DN	10 mm 15 mm 20 mm 25 mm 32 mm 40 mm 50 mm 65 mm 80 mm 100 mm 125 mm 150 mm 200 mm 250 mm 300 mm 350 mm 400 mm 450 mm 500 mm 600 mm 700 mm 800 mm 900 mm 1000 mm 1200 mm mm
Nominal pressure PN	0.6 MPa 1.6 MPa 2.5 MPa 4 MPa 6.3 MPa 10 MPa 16 MPa 25 MPa 32 MPa 40 MPa 50 MPa MPa
Material of manufacture	carbon steel (steel 20; 25l, etc.); low-alloy steel (09g2s; 20gl, etc.); high-alloy stainless steel (12x18n9t; 12x18n10t; 12x18n9tl, etc.); high-alloy stainless steel with molybdenum content (10x17n13m3t, etc.); sta
Housing type	Collapsible; all-welded
Pipeline connection type	flanged; coupling; socket; socket-nipple; under welding to pipeline; combined; interflanged.
Actuator (control type)	manual (handle or gearbox); electric
Valve body flow type	full bore; part bore
Direction of medium flow	any
Type of climatic version according to GOST 15150	temperate climate (u1) cold climate (hl1) temperate and cold climate (uhl1)
Installation	above ground; underground

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
