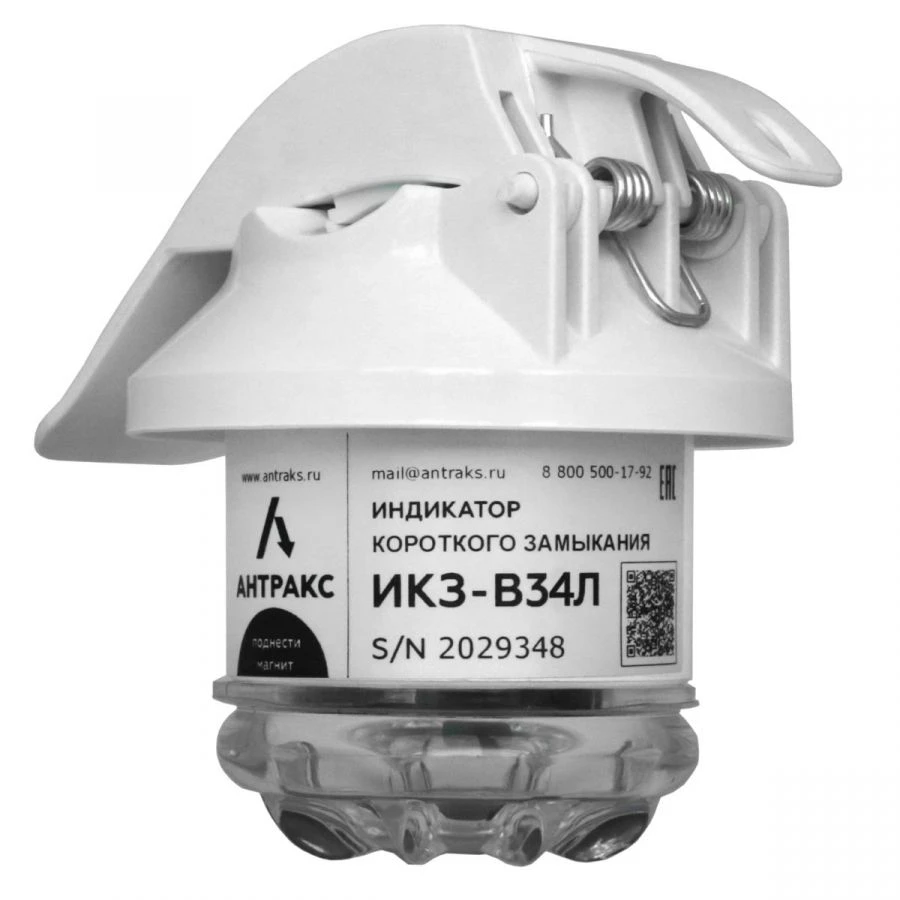

Short-circuit indicator of IKZ-V type (model IKZ-V34L-U3)

Electrical Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Indicators of short-circuit are designed for localisation of the damaged area on overhead lines of distribution power grids with voltage 6-35 kV, frequency of the network 50 Hz, with any type of neutral (blind-earthed, resistive, compensated isolated) with one-sided feeding, ring lines with two-sided feeding. The set provides joint data processing. IKZ-V34L-U3 registers short-circuits from 20 A, short-circuit faults from 0.5 A, determines the direction of short-circuit faults. All indicators of the set are equipped with radio channels of BLE 2.4 GHz standard, which allows easy adjustment and correction of settings from the control panel, provides transmission of information about the emergency situation to the control centre (when equipped with BSPI). Indication of alarms by means of LEDs. Power supply source: Lithium battery (19 Ah). Battery life in standby mode: 7 years. Temperature range: Standard from - 40 deg C to +70 deg C; Extended from - 60 deg C to +85 deg C. IP 68

Specifications

Voltage class of overhead lines 6...35 kW

Network frequency SBVVBG

Short-circuit current sensitivity 20 A

Sensitivity to short-circuit current 0.5 A

Wire diameter 5...40 mm

Visibility of visual indication at night time 500 m

Visibility of the visual indication during daylight hours 100 m

Absolute current threshold in A 20...1000 A

Differential current trip threshold in % 50...500 %

Differential current threshold in A 20...500 A

Blanking of inrush currents 0...200

Number of removable lithium batteries (19Ah) 1 pc

Time to analyze the alarm process 0.5...200

Battery life in standby mode 7 a

Local communication: Bluetooth short-range radio link 2.4

Temperature range standard -40 to +70 °C

Temperature range extended -60 to +85 °C

Minimum load current 2 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
