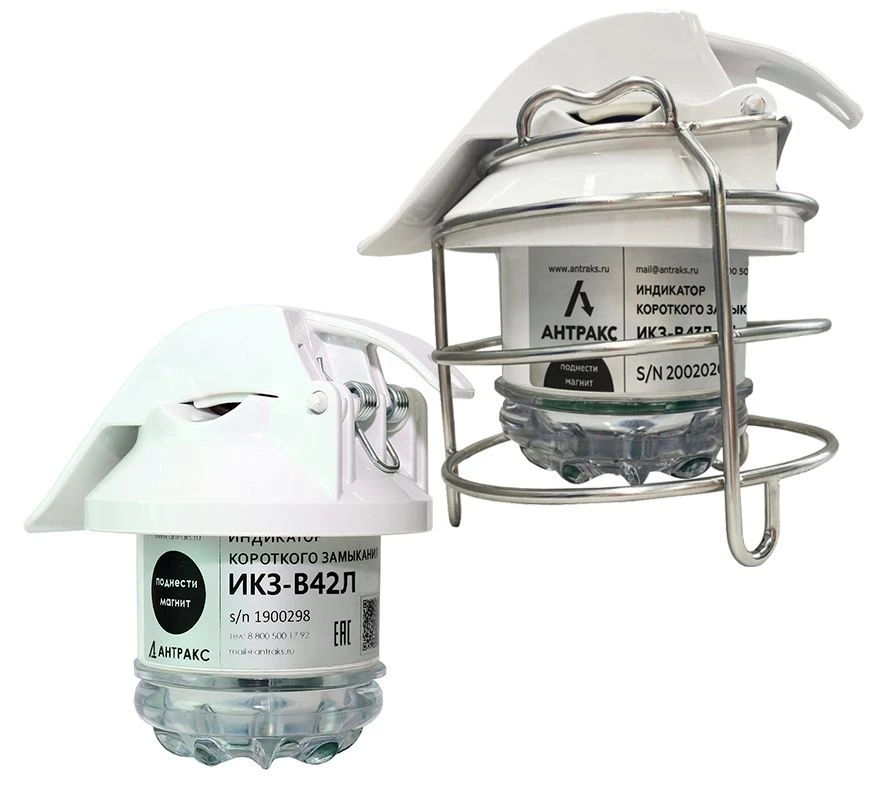

Short-circuit indicator of IKZ-B type (model IKZ-B42L)

Electrical Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Indicators of short circuit for overhead lines of distribution power grids of high voltage class 110 kV, network frequency 50 Hz, mounted directly on the wires of the controlled line, wire diameter 7-40 mm, with one-way and two-way feeding. IKZ-V42L fixes MFZ from 20 A, has a radio channel of short-range communication of Bluetooth Low Energy (BLE) 2.4 GHz standard, which allows easy setting and adjustment of settings from any smartphone with installed software PPI-3, provides transmission of information about the emergency situation to the control centre via GSM communication (when equipped with BSPI-3L-MR). Indication of alarms by means of LEDs. Power supply source: Lithium battery (19 Ah). Battery life in standby mode: 7 years. Temperature range: Standard from - 40 deg C to +70 deg C; Extended from - 60 deg C to +85 deg C. Indicator protection degree IP 68. Faraday cage is used to protect indicators from induced voltage.

Specifications

Overhead line voltage class 110 kV

Network frequency SBVVBG

Short-circuit current sensitivity 20 A

Battery life 7 a

Absolute current trip threshold 20...1000 A

Differential current trip threshold in % 50...500 %

Blanking of inrush currents 0...200

Differential current threshold a A A 20...500 A

Wire diameter 5...40 mm

Visibility of visual indication in daytime 100 m

Visibility of visual indication at night 500 m

Power supply: Lithium battery (19 Ah) 1 pc

Time to analyze the alarm process 1...200

Local communication: Bluetooth short-range radio link 2.4

Temperature range standard -40 to +70 °C

Temperature range extended -60 to +85 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
