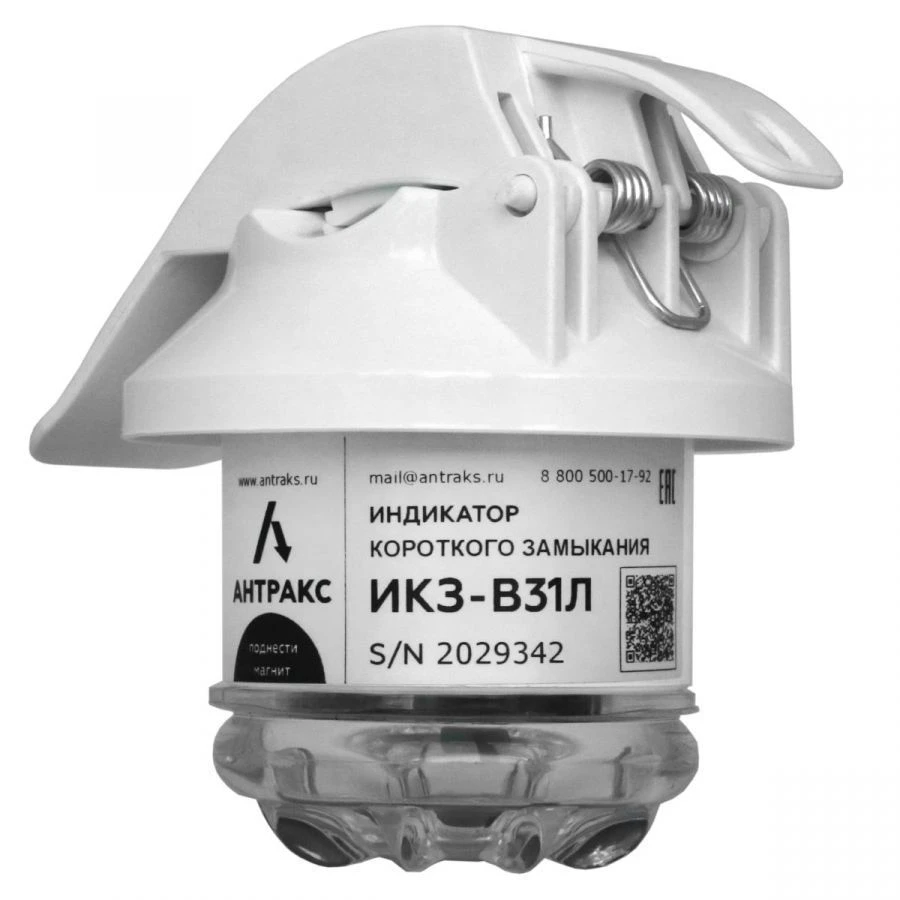

Short Circuit Indicator for Power Distribution Networks - Model IKZ-V31L

Available for Import

Short Circuit Indicator for Power Distribution Networks - IKZ-V31L Application

Electrical Measurement Instruments

Manufacturer: ANTRAKS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Indicator of short-circuit for overhead lines of power distribution networks of voltage 6-35 kV, network frequency 50/ 60 Hz, mounted directly on the wires of the monitored line, wire diameter 5-40 mm, with any type of neutral (blind-earthed, resistive, compensated insulated) with one-sided feeding, ring lines with two-sided feeding. IKZ-V31L fixes MFZ from 20 A, has a radio channel of short-range communication standard Bluetooth Low Energy (BLE) 2.4 GHz, which allows you to easily adjust and adjust the settings from any smartphone with installed software PPI-3, provides the transmission of information about the emergency situation to the control centre via GSM-communication (when equipped with BSPI). Indication of alarms by means of LEDs.

Power supply source: Lithium battery (19 Ah). Battery life (in standby mode): 7 years. Temperature range: Standard from - 40 deg C to +70 deg C; Extended from - 60 deg C to +85 deg C.

Degree of protection of the indicator IP 68.

Specifications

Temperature range extended

-60 to +85 °C

Temperature range standard

-40 to +70 °C

Local communication: Bluetooth short-range radio link

2.4

Battery life in standby mode

7 year

Time to analyze the alarm process

1...200

Removable lithium battery (19 Ah)

1 pcs

Blanking of inrush currents

0...200

Differential current trip threshold in %

50...500 %

Differential current threshold a A A

20...500 A

Absolute current trip threshold

20...1000 A

Visibility of visual indication at night time

500 m

Visibility of the visual indication during daylight hours

100 m

Wire diameter

5...40 mm

Short-circuit current sensitivity

20 A

Network frequency

Voltage class of overhead lines

6...35 kV

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
