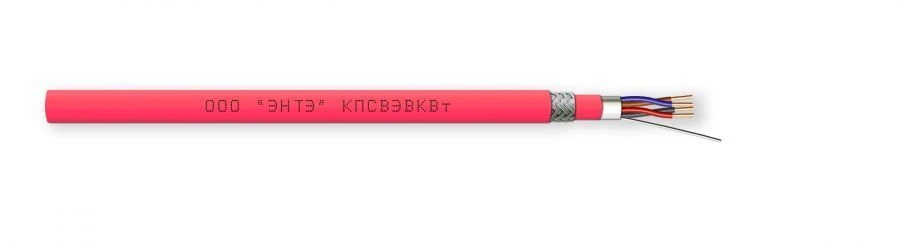

Shielded Data Transmission Cable KPSWEVK (KMVEVK)

Available for Import

Shielded Data Transmission Cable KPSWEVK for Efficient Data Transfer

Communication Cables & Wires

Manufacturer: ENTE LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Cables armoured symmetrical pair twisting for data transmission, with single-wire copper conductive cores with cross-section from 0,20 to 2,50 mm², number of twisted pairs from 1 to 12 or two parallel pairs, with insulation, sheath and protective hose made of frost-resistant polyvinyl chloride plastic, with a screen of laminated aluminium foil, with armour in the form of a braid of galvanized steel wires, designed for operation at voltages up to 300 V inclusive alternating current frequency of 50 Hz.

Specifications

Ohmic asymmetry of cores in a pair

2 %

Wave impedance

100 ohm

Working capacity

10000000000

Electrical resistance of the circuit (two conductors of a pair)

192 ohm

Electrical resistance of core insulation

100 ohm

Test voltage between conductors

1 kV

Attenuation factor
