Available for Import
Shield wattmeters and varmeters Ts42303
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

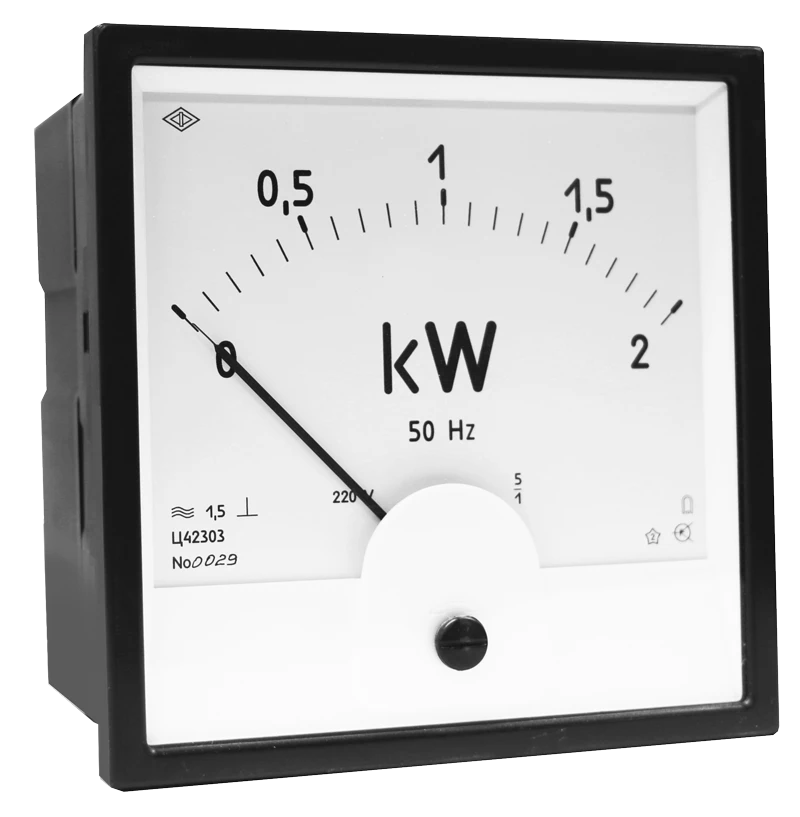

Wattmeters and varmeters Ts42303 are designed to measure active or reactive power in three-phase three-wire AC circuits with frequency 50-60 Hz at uniform or non-uniform loading of phases. The devices are made on the basis of electronic converter of input signal into DC signal and magneto-electric device, placed in one case. The dials and scales of the devices are made in accordance with GOST 5365. The instruments are verified in accordance with the requirements of GOST 8.497-83. Ts42303 are included in the State Register of Measuring Instruments of the Russian Federation No. 24987-18. Interverification interval is 3 years.
Specifications
Dimensions of the front panel, mm
120x120
Panel cutout, mm
112x112
Accuracy class
1,5
Degree of protection IP
IP00
Weight, kg, not more
0,9
Operating temperature range
-40...+50 °?
Measured parameters
кВт, МВт, ГВт, кВар, МВар, ГВар
Power factor
For wattmeter cos?=1; for varmeter sin?=1
Rated voltage / rated current (Switching method)
127 V, 220 V, 230 V, 380 V, 400 V / 5 A (direct connection); 1 A, 5 A (connection via current transformer)
Rated voltage / rated current (Switching method)
100 V / 1 A, 5 A (connection via current and voltage transformer)
Scale length, mm, not less
94
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
