Set of teaching-laboratory equipment "Determination of resistances by means of Wheatstone bridge circuit" UP6590:Set of teaching

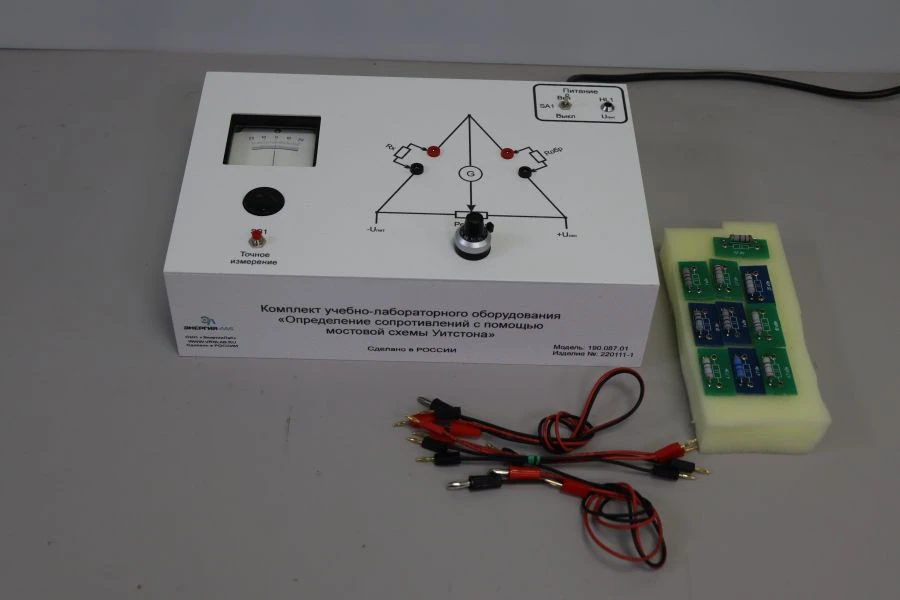

The set of teaching-laboratory equipment is designed for conducting laboratory-practical with the purpose of determining resistances with the help of Wheatstone bridge circuit. Experiments are carried out using a measuring bridge with a rheochord, galvanometer and terminals for connecting minimodules, assembled in a desktop module. The laboratory bench includes: 1. measuring bridge module with rheochord and terminals 2. module power switch 3. module power supply indicator; 4. galvanometer for measuring current in electrical circuits. 5. terminals for connecting the resistance shop; 6. non-locking button for precise measurement: 7. terminals for connection of a reference resistance; 8. turn counter of the rheochord resistor 9. power supply
