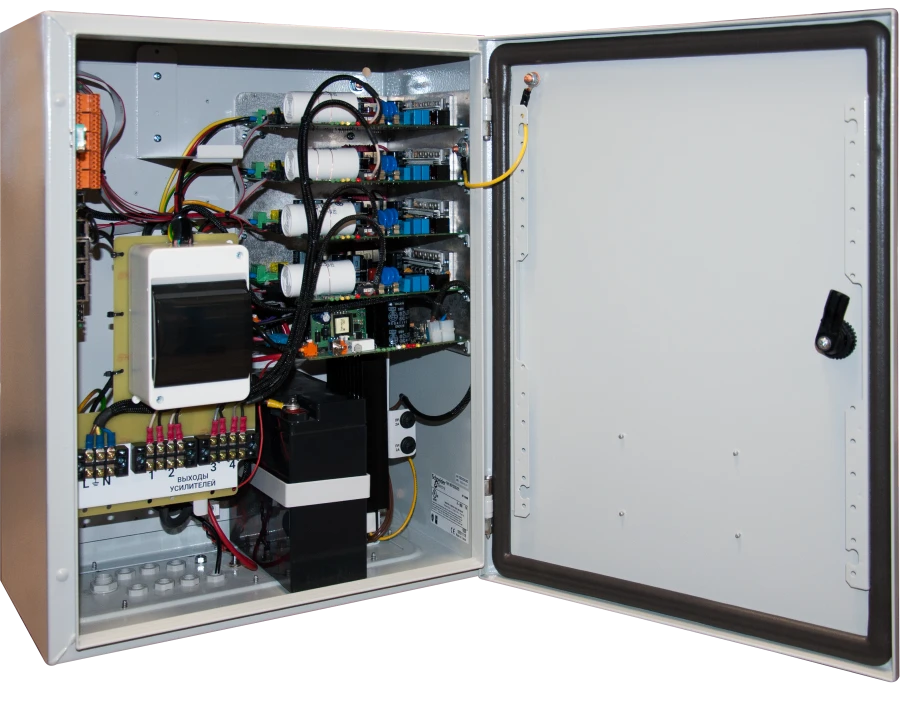

Set of equipment of stationary digital module MUSSON-SC PAMR.425648.001

The equipment set of stationary digital module MUSSON-SC PAMR.425648.001 (hereinafter referred to as MUSSON-SC) is designed for reproduction of acoustic information and speech signals to the population, as well as simulated sound of an electronic siren through connected horn loudspeakers.
MUSSON-SC is designed to work in conjunction with the MUSSON-U 100 PAMR.425648.003 (hereinafter referred to as the MUSSON-U amplifier unit). The MUSSON-U amplifier unit is used only as part of MUSSON-SC and is a digital power amplifier of 100 W audio frequency signals with a linear output voltage of 100 V (RMS - effective value) for operation with typical broadcast horn loudspeakers with a transformer. Depending on the delivery, the MUSSON-SC can include up to 4 MUSSON-U amplifier units.
Each amplifier unit acts as a separate independent amplifier channel for load connection (horn loudspeakers...
