Available for Import

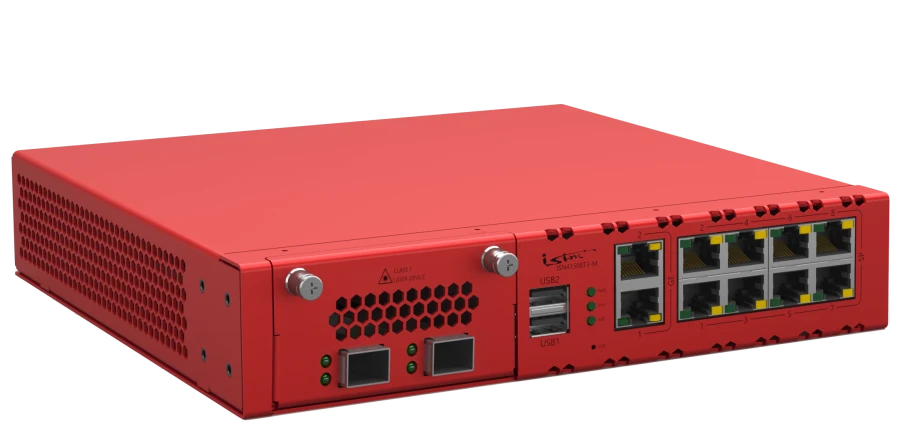

Service Router ISN41508T3-M/ISES1004
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
The ISN415 line of service routers is a new Russian telecommunication equipment for enterprise-class access level networks, designed to organise communication with unloaded terminal objects, communication nodes of corporate networks, telecom operators and service providers. Thanks to the algorithm of data traffic processing and the built-in switching processor, the router is able to fully process traffic of L3 and higher levels, as well as to be embedded in L2 segments of the network. The software of the service router is a fully Russian development. The hardware platform, manufactured in the Russian Federation, operates under the Baikal-T processor (based on MIPS architecture).
Technical Specifications
| Traffic filtering functions intended for the control module | Armoured glass |
|---|---|
| Cooling type | Active |
| Type of control module in relation to the switching matrix | Separate |
| Console port interface type | RJ-45 |
| Type of power supplies (by type of electric current flow) | For alternating current (AC) |
| Switching matrix N+1 redundancy diagram | no |
| N+1 power supply unit redundancy scheme | no |
| Control module redundancy | no |
| Switching matrix redundancy | no |
| Supports Shortest Path Bridging (SPB; IEEE 802.1aq) technology | no |
| Supports Auto MDI-X (Auto Medium Dependent Interface Crossover) technology | Armoured glass |
| Supports IPv6 static routing | Armoured glass |
| Supports IPv4 static routing | Armoured glass |
| Supports RFC 8365 (EVPN-VXLAN) standard | no |
| Supports RFC 7348 (VXLAN) standard | no |
| IEEE 802.1ad (QinQ) support | Armoured glass |
| IEEE 802.1Q (VLAN) support | Armoured glass |
| Support for creating SSL VPN tunnels | no |
| Supports creation of IPSec VPN tunnels | Armoured glass |
| Supports OSPF dynamic routing protocol extension for multicast traffic (MOSPF) | no |
| Support for OSPF Dynamic Routing Protocol Extension for Segment Routing (RFC 8665) | no |
| Support for IS-IS Dynamic Routing Protocol Extension for Segment Routing (RFC 8667) | no |
| Supports VRRP (Virtual Router Redundancy Protocol) redundancy protocol | Armoured glass |
| Supports CARP (Common Address Redundancy Protocol ) redundancy protocol | Armoured glass |
| Supports RIPv2 (Routing Information Protocol version 2) dynamic routing protocol | Armoured glass |
| Supports RIPv1 (Routing Information Protocol version 1) dynamic routing protocol | Armoured glass |
| Support for RIPng (Routing Information Protocol next generation) dynamic routing protocol | Armoured glass |
| Supports OSPFv3 (Open Shortest Path First version 3) dynamic routing protocol | Armoured glass |
| Supports OSPFv2 (Open Shortest Path First version 2) dynamic routing protocol | Armoured glass |
| IS-ISv6 (Intermediate System to Intermediate System with IPv6 support) dynamic routing protocol support | Armoured glass |
| Supports IS-IS (Intermediate System to Intermediate System) dynamic routing protocol | Armoured glass |
| Supports EIGRP IPv6 (Enhanced Interior Gateway Routing Protocol with IPv6 support). | no |
| Supports EIGRP (Enhanced Interior Gateway Routing Protocol) dynamic routing protocol | no |
| Supports BGPv6 (Border Gateway Protocol with IPv6 support) dynamic routing protocol. | Armoured glass |
| Supports BGP (Border Gateway Protocol) dynamic routing protocol | Armoured glass |
| Support for Resource Reservation Protocol (RSVP) dynamic MPLS tag distribution protocol | Armoured glass |
| Supports MPLS Label Distribution Protocol (LDP) dynamic label distribution protocol | Armoured glass |
| Supports Link Aggregation Control Protocol (LACP) | Armoured glass |
| Support for STP (Spanning Tree Protocol) | Armoured glass |
| SNMPv3 (Simple Network Management Protocol version 3) support | Armoured glass |
| SNMPv2c (Community-Based Simple Network Management Protocol version 2) support | Armoured glass |
| SNMPv1 (Simple Network Management Protocol version 1) support | Armoured glass |
| Rapid Spanning Tree Protocol (RSTP) support | Armoured glass |
| RADIUS protocol support for AAA | Armoured glass |
| PPTP (Point-to-Point Tunneling Protocol) support | Armoured glass |
| PPPoE (Point-to-Point Protocol over Ethernet) support | Armoured glass |
| PPP (Point-to-Point Protocol) support | Armoured glass |
| Multiple Registration Protocol (MRP; IEEE 802.1ak standard) support | no |
| Multiple Spanning Tree Protocol (MSTP) support | Armoured glass |
| Supports Link Layer Discovery Protocol (LLDP) | Armoured glass |
| LDAP support for AAA | no |
| Kerberos protocol support for AAA | no |
| Diameter protocol support for AAA | no |
| Support for sending system events (logs) to remote storage (e.g. syslog server) | Armoured glass |
| Support for Multiprotocol Extensions for BGP (Multiprotocol Extensions for BGP; MBGP) | Armoured glass |
| Support for traffic shaping mechanism (traffic shaping) | Armoured glass |
| Supports VXLAN and MPLS domain gluing mechanism for EVPN | no |
| Support for traffic policing mechanism (traffic policing) | Armoured glass |
| Support for MultiProtocol Label Switching (MPLS) mechanism | Armoured glass |
| Support for Type of Service (ToS) traffic labeling mechanism | Armoured glass |
| Support for Differentiated Services (DiffServ) traffic marking mechanism | Armoured glass |
| Support for Class of Service (CoS; IEEE 802.1p standard) traffic marking mechanism | no |
| Supports NAT (Network Address Translation) mechanism | Armoured glass |
| Support for AAA (Authentication, Authorization, Accounting) mechanism | Armoured glass |
| Support for Policy-Based Routing (PBR) | Armoured glass |
| Supports traffic mirroring to a remote host (not directly connected to the device) | Armoured glass |
| Supports port mirroring within a single device | Armoured glass |
| Supports network access protection standard (802.1x) | no |
| Supports recording of system events (logs) on the built-in memory (e.g., SSD) | Armoured glass |
| Supports recording system events (logs) to an external memory medium (e.g., USB flash drive) | Armoured glass |
| Support for granular access control (granular access control) | no |
| Support for MPLS label distribution using BGP protocol (RFC 3107 - Carrying Label Information in BGP-4). | Armoured glass |
| Virtual Private Wire Support (VPWS) with EVPN signaling | no |
| Support for equivalent path balancing for MPLS protocol | no |
| Equivalent path balancing support for IP protocol | Armoured glass |
| Non-equivalent path balancing support for MPLS protocol | no |
| Support for non-equivalent path balancing for IP protocol | no |
| Support of load balancing on communication channels by means of MPLS ECMP (equal cost multipath) tools | no |
| Support of IP ECMP (equal cost multipath) load balancing on communication channels | Armoured glass |
| Support for WRR (weighted round robin) queue management algorithm | Armoured glass |
| Support for WRED (weighted random early detection) queue management algorithm | Armoured glass |
| Support for WFQ (weighted fair queuing) queue management algorithm | Armoured glass |
| Support of TBF (token bucket filter) queue management algorithm | Armoured glass |
| Support for RRED (robust random early detection) queue management algorithm | no |
| Support for RR (round-robin) queue management algorithm | no |
| Support for RED (random early detection) queue management algorithm | Armoured glass |
| Support for HTB (hierarchical token bucket) queue management algorithm | Armoured glass |
| Support for GRED (generalized random early detection) queue management algorithm | Armoured glass |
| Support for FQ (fair queuing) queue management algorithm | no |
| Support for DWRR (deficit weighted round robin) queue management algorithm | no |
| Support for DRR (deficit round robin) queue management algorithm | no |
| Support for CBQ (class-based queueing) queue management algorithm | Armoured glass |
| Support for ARED (advanced random early detection) queue management algorithm | no |
| Channel aggregation support (without protocol) | no |
| Autonegotiation support (autonegotiation) | Armoured glass |
| Supports IGMP (Internet Group Management Protocol) multicast routing protocol | Armoured glass |
| Supports DVMRP (Distance Vector Multicast Routing Protocol) multicast routing protocol | no |
| Support for multicast routing with PIM (Protocol Independent Multicast) | Armoured glass |
| Supports jumbo frames (jumbo frames) ethernet frames | Armoured glass |
| Supports VXLAN L3 gateway | no |
| Supports VXLAN L2 gateway | no |
| SAML (Security Assertion Markup Language) support | no |
| MPLS Virtual Private Wire Support (VPWS) | Armoured glass |
| IPv6 support | Armoured glass |
| Support for BGP-MPLS virtual private networks for multicast (RFC 6513) | no |
| Support for BGP-MPLS virtual private IPv6 networks (RFC 4659) | Armoured glass |
| Support for BGP-MPLS virtual private IPv4 networks (RFC 4364) | Armoured glass |
| Supports BGP-MPLS virtual private networks (VPLS) | BGP-signaling (Kompella) |
| Support for BGP-MPLS ethernet virtual private networks (RFC 7432 - EVPN MPLS) | no |
| Airflow direction | From front to back (front-to-back) |
| Availability of IP spoofing protection functions (IP-spoofing) | Armoured glass |
| Availability of protection features against ARP-related attacks (such as ARP-spoofing) | Armoured glass |
| Availability of Proxy ARP function | Armoured glass |
| Availability of Local Proxy ARP function | Armoured glass |
| Availability of DHCP Snooping function (protection against DHCP-related attacks) | Armoured glass |
| Availability of web-filtering / content filtering system (web-filtering / content filtering) | no |
| Availability of URL filtering system (URL filtering) | no |
| Availability of Network Prevention System (NPS) | no |
| Availability of Data Loss/Leak Prevention (DLP) system | no |
| Presence of Network Detection System (NDS) | no |
| Availability of USB ports | Armoured glass |
| Separate console (serial/serial) port for management and diagnostics | Armoured glass |
| Availability of mechanisms for traffic filtering with saving session information (stateful) | no |
| Availability of mechanisms for filtering traffic by application signatures | Armoured glass |
| Availability of traffic filtering mechanisms on TCP/UDP ports | Armoured glass |
| Availability of mechanisms for filtering traffic without saving session information (stateless) | Armoured glass |
| Existence of unicast traffic management mechanisms to prevent unicast storms | Armoured glass |
| Availability of multicast traffic management mechanisms to prevent multicast storms | Armoured glass |
| Availability of broadcast traffic management mechanisms to prevent broadcast storms | Armoured glass |
| Availability of network load balancing mechanisms (multi-WAN routing / multihoming) | no |
| Availability of BPDU (Bridge Protocol Data Unit) message filtering mechanism on ports | Armoured glass |
| Availability of a mechanism for blocking ports when BPDU (Bridge Protocol Data Unit) messages are received | Armoured glass |
| Availability of IGMP snooping mechanism | Armoured glass |
| Presence of protection against root device change in the STP domain (Root Guard / Protection) | Armoured glass |
| Availability of additional protection against loops in the STP domain (Loop Guard / Protection) | Armoured glass |
| Built-in temperature sensor | Armoured glass |
| Availability of built-in battery backup power supply unit | no |
| Availability of a built-in module for connection to mobile (cellular) networks | no |
| Built-in cooling system failure sensor | Armoured glass |
| Built-in power supply failure sensor | no |
| Availability of hardware cryptographic gas pedal (hardware cryptographic gas pedal) | no |
| Availability of hardware routing/forwarding gas pedal (hardware routing/forwarding gas pedal) | Armoured glass |
| Availability of antivirus | no |
| Availability of ALG (Application-Level Gateway) | no |
| Modular | Armoured glass |
| Methods of distribution of MPLS LDP protocol labels | DOD |
| Number of SFP+ ports (10 Gbit/s; SFF standard SFF-8472) | 2 pc |
| Number of 1000BASE-T ports (GigabitEthernet; IEEE 802.3ab standard) | 10 pc |
| Number of power supplies | 1 pc |
| Using a special purpose integrated circuit (ASIC) for switching | Armoured glass |
| Height, U | 1 |
| Execution of packet filtering functions using access lists (ACL - Access Control List) by means of specialized tools | Armoured glass |
| Can be installed in a narrow telecommunication rack (10" wide) | no |
| Can be installed in a standard telecommunication rack (19 inches wide) | Armoured glass |
| Ability to control the device via Telnet protocol | Armoured glass |
| Ability to control the device via SSHv2 protocol | Armoured glass |
| Ability to control the device via SSHv1 protocol | Armoured glass |
| Ability to control the device via HTTP protocol | Armoured glass |
| Ability to manage the device via HTTPS protocol | Armoured glass |
| Access control capability when connected to the console (serial/serial) port | Armoured glass |
| Ability to work as a wireless access point (Wi-Fi access point) | Armoured glass |
| Ability to work as a wireless access point controller (Wi-Fi controller) | no |
| Ability to work as an NTP server (NTP server) | Armoured glass |
| Ability to work as an NTP client (NTP client) | Armoured glass |
| Ability to work as a DNS server (DNS server) | Armoured glass |
| Ability to work as DNS proxy (DNS proxy) | Armoured glass |
| Ability to work as a DNS client (DNS client) | Armoured glass |
| Ability to work as a DHCP server | Armoured glass |
| Ability to work as a DHCP client | Armoured glass |
| Ability to work as a DHCP relay agent | Armoured glass |
| Ability to support hot-swapping of power supplies | no |
| Ability to send DHCP options in DHCP server operation mode | Armoured glass |
| Ability to configure ports in hybrid mode (support receiving and transmitting both tagged and untagged traffic) | Armoured glass |
| Clustering capability | Armoured glass |
| Possibility to use USB ports for connection of external modems for access to mobile (cellular) networks | Armoured glass |
| Ability to change the size of the maximum transmission unit (MTU) | Armoured glass |
| Ability to upload files to the device using an encrypted file transfer protocol (e.g., SSH File Transfer Protocol (SFTP)) | no |
| Ability to upload files to the device using an unencrypted file transfer protocol (e.g. File Transfer Protocol (FTP), T | Armoured glass |
| Ability to upload files from the device using an encrypted file transfer protocol (e.g., SSH File Transfer Protocol (SFTP), | no |
| Ability to upload files from the device via an unencrypted file transfer protocol (e.g., File Transfer Protocol (FTP), Tr | Armoured glass |
| Ability to load balance between devices in a cluster | Armoured glass |
| LAN port speed, Mbps | 1000 |
| Number of WAN ports | 2 pc |
| Configuration with separate control processor | Armoured glass |
| Client interfaces | WEB interface, command line interface (CLI) |
| Availability of power supply redundancy | no |
| Redundancy of the control unit | no |
| Availability of amplifiers with remote optical pumping | no |
| Availability of Raman-pumped amplifiers | no |
| Availability of reconfigurable optical I/O multiplexers | no |
| Availability of optical control channel | no |
| Data center interconnect systems with front-to-back blowing direction available in the lineup | no |
| Possibility to modify VPO according to customer's requirements | Armoured glass |
| Support (hardware and management system level) for third-party products that perform channel encryption | no |
| Presence of transponders and aggregators with signal processing on FPGA with coherent detection (linear transmission rate ?100G) | no |
| Availability of transponders and aggregators with signal processing on FPGA with direct detection (linear transmission rate of 2 | no |
| Supported protocols | IPv4;IPv6;MPLS;BGP;OSPF;RIP;IPsec;Stunnel;VPN;IPoGRE;IS-IS;IGMP;PIM;QoS;STP;SNMP;NTP;VRF;LLDP |
| Number of RS-422/232 interfaces | 1 pc |
| Number of Ethernet ports | 10 pc |
| Placement | In 19" server rack; wall-mounted; desktop |
| Power supply voltage | 220 V |
| Management and control of work | SNMP v1-3 |
| Operation on multiple twisted pairs | no |
| Support for quality of service mechanisms | Armoured glass |
| User interfaces | WEB interface, command line interface (CLI) |
| Maximum data transmission rate Kilobits per second | 1500000 |
| Maximum signal transmission distance | 1 |
| Data transfer rate | 10/100/1000 |
| Form factor | 1U |
| Connector type | RJ-45 |
| Constructive | slot for expansion module |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
Shipping & Payment Information
Shipping Terms
- FOB: Novorossiysk, Russia
- CIF: Available to major ports worldwide
- EXW: Manufacturer's facility, Russia
Delivery Time
- Sea freight: 30-60 days (depending on destination)
- Air freight: 14-21 days (for urgent orders)
- Production lead time: 30-90 days (depending on order size)
Payment Methods
- Letter of Credit (L/C)
- Wire Transfer (T/T)
- Escrow Services
Order Minimums
- We work with orders starting from 1 container
- You can mix different products in one container
- Volume discounts available for larger orders
Customs & Documentation Support
We provide comprehensive assistance with all export documentation, customs clearance, and logistics arrangements. Our team has extensive experience facilitating international trade with businesses in Africa, Middle East, Asia, and Latin America.
Contact Our Import Specialists
WhatsApp (Recommended)
For fastest response and immediate assistance with pricing, availability, and ordering.
+971 58 657 4796For detailed inquiries, documentation requests, and formal communications.
Send Email Inquiry info@tonzar.comRequest Call Back
Schedule a consultation with our import specialists at your convenience.
Business Hours
We're available to assist you during the following hours:
- Monday - Friday: 9:00 AM - 6:00 PM (GMT+4)
- Saturday: 10:00 AM - 2:00 PM (GMT+4)
- Sunday: Closed
Our WhatsApp support is available outside business hours for urgent inquiries.
Similar Products You May Be Interested In
Information packet switching and routing equipment, UTINET Opticstack Q218-100-R1-R managed switch
View Details
?????????? ?????-2224GE-DC220
View Details
Broadband amplifier SU1000 mod.1000
View Details
Switching equipment InZer-3224GEM
View Details
Broadband amplifier SU1000 mod.1110
View Details
S Series Communication Modules
View Details
UNIVERSAL MULTIPLEXING AND TRANSMISSION SYSTEM MC-115T
View Details
Hardware-software complex "Dionis-NX"
View Details
?????????? ?????-2420PGEF
View Details
MCR-552 router
View Details
?????????? ?????-3448GE-FS
View Details
Switching equipment InZer-2204UM
View DetailsVerified Suppliers
All products are sourced directly from authorized Russian manufacturers
Quality Assurance
Products meet international quality standards with proper certification
Global Shipping
Reliable logistics solutions to deliver products to your location
Secure Payments
Multiple secure payment options to facilitate international transactions
