Semitrailer - tipper, modification 924900, configuration 924900-30H1, with BPV-Ost axles: HSFALM 9010-15 V36 ECO-PLUS 3 61.68.36

Versatile Vehicle Trailers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

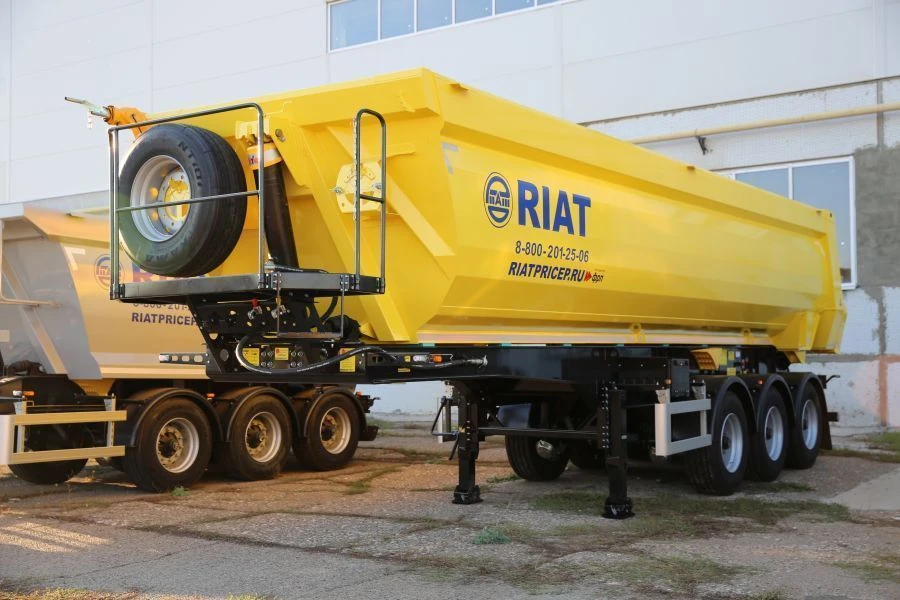

HALF-PIPE tipper trailer. Equipment 924900-30H1. Overall dimensions of the semi-trailer (DxWxH): 9870x2550x3295 mm. Internal dimensions of the body (DxWxH): 8200x2290x1670 mm. Cargo volume, 30 cubic metres. Mass indicators: Curb weight of the trailer: 8300 kg. Payload: 30100 kg. Gross weight: 38400 kg. Tandem axle load: 11,400 kg. Bogie load: 27,000 kg. TMS height: 1200/1300 mm. Unloading direction: Backwards. Platform lift angle: 45º ... 47º. Track: 2045 mm. The omega-shaped cross-section of the platform ensures a lower centre of gravity of the loaded semi-trailer compared to other types of HALF-PIPE cross-sections. The tipping axis of the platform on the frame is located with a slight offset from the axis of the suspension pneumatic springs attachment to the frame. This increases the stability of the semi-trailer when unloading. Increased service life of the semitrailer metal structure due to the use of high-strength steels.

Technical Specifications

Type of product according to PP RF 616	Semi-trailers) to passenger cars and trucks, motorcycles, scooters and quadricycles
Type of semi-trailer	Dump truck
Axle load capacity	7.5...12 t
Front track	2030...2050 mm
Rear track	2030...2050 mm
Climatic version	?1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
