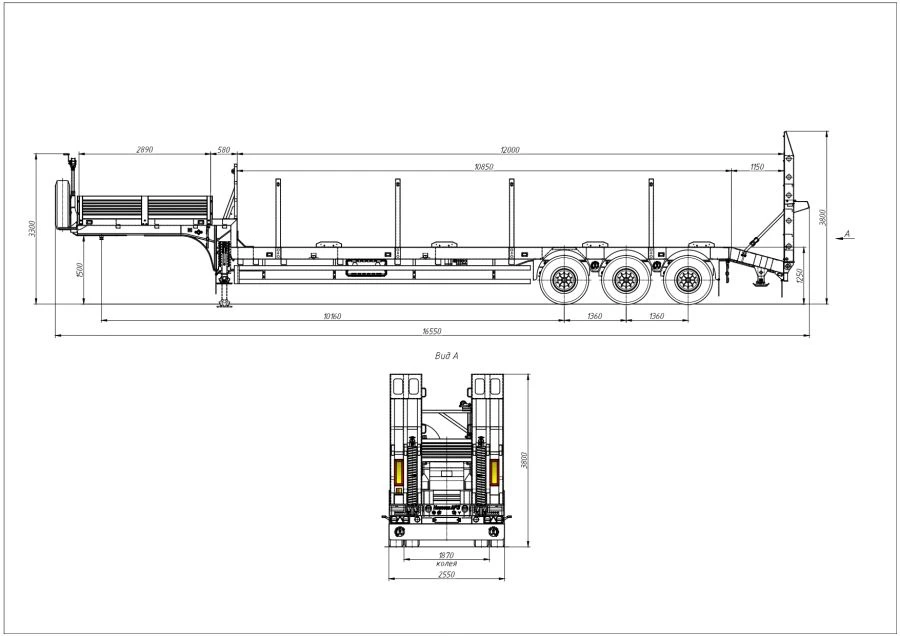

Semitrailer 98134B (loading space design - load-bearing frame, platform, cones, front shield, gangway)

Heavy Duty Trailers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The trucks are intended for transportation of assortment, other long length cargoes, construction and road equipment and other indivisible cargoes with weight of 20 tonnes and more, containers of various types, including containers and tank containers, removable tanks, removable tank bodies intended for transportation of dangerous goods. Technically permissible max. weight of the vehicle is 48-60 tonnes. Loading space - load-bearing frame with all-metal open platform, with a front protective shield, with length-sliding/width-sliding chocks, with taps. Coupling pin diameter 50.8 mm or 88.9 mm. Axles 12 tonnes. Ltd. Tyres 11 R22,5; 12,00 R20; 275/70 R22,5; 295/80 R22,5; 315/70 R22,5; 315/80 R22,5; 385/55 R22,5; 385/65 R22,5 produced by "Cordiant" JSC / "Nizhnekamsk Tyre Plant CMK" LLC / "Nortek" LLC / "Omskshina" JSC. Wheel discs manufactured by OOO "AccuRide Wheels Russia" or PJSC "ChKPZ". Receiver manufactured by OOO TD Avtotechnology. Lighting equipment by OOO "Atlanta". Floor level crane of "VBK Vostok" Ltd.

Technical Specifications

Number of axles	3 pc
Base machine type	truck
Climatic version	UHL
Type of semi-trailer	Heavy hauler; trawl; sorting; flatbed; container carrier
Base machine type	truck
Gross weight	60 t
Type of semi-trailer	Heavy hauler
Front track	2000...2050 mm
Rear track	2000...2050 mm
Axle load capacity	10...12 t
Maximum length	18500 mm
Width	2550...3300 mm
Maximum height	4300 mm
Technically permissible maximum load on the coupling ball bar	17652-23536
Technically permissible maximum mass of the vehicle	48000...60000 kg
Vehicle kerb weight	6000...18000 kg
Ergonomic parameters	Paint coatings used for the exterior surfaces of semi-trailers, allow the possibility of painting or repainting them with natural drying paints; the force required to lift the spare wheel does not exceed 500 N (50 kgf). When using the mechanism
Warranty period	B1/B8 2100/900 MHz
Reliability parameters	Average service life before the first major overhaul under the first category of operating conditions in compliance with all operating and maintenance rules specified in the operating manual - not less than 100,000 km; MTBF under the first category of cond
Scope of application	Designed for transportation of construction and road equipment and other indivisible cargoes weighing 20 tons and more, containers of various types, including containers and tank containers, detachable tanks, detachable tank bodies designed for transportat
Base	3200...9500+1300...2600+1300...2600

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
