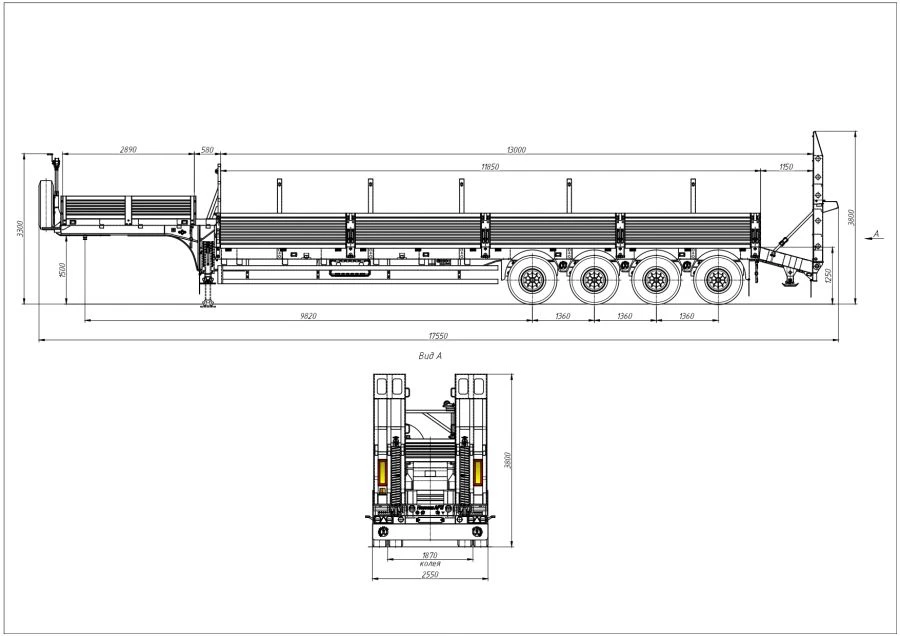

Semitrailer 98132B (loading space design - load-bearing frame, platform, front shield, sides, cones, gangway)

Heavy Duty Trailers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The trucks are intended for transportation of assortment, other long length cargoes, construction and road equipment, indivisible cargoes weighing 20 tonnes and more, containers of various types, including tank containers, detachable tanks, detachable tank bodies intended for transportation of dangerous goods. The technically permissible maximum mass of the vehicle is 58-72 tonnes. Loading space - load-bearing frame with all-metal open platform, with front protective shield, with length-sliding / width-sliding chocks, with ladders, removable sides. The kingpin diameter is 50.8 mm or 88.9 mm. Axles 12 tonnes manufactured by "Plant" Ltd. Tyres 11 R22,5; 12,00 R20; 14,00 R20; 235/75 R17,5; 275/70 R22,5; 295/80 R22,5; 315/70 R22,5; 315/80 R22,5; 385/55 R22,5; 385/65 R22,5 produced by JSC "Kordiant"/ LLC "Nizhnekamsk Tyre Plant CMK"/ LLC "Nortek"/JSC "Omskshina". Wheel discs of OOO "AccuRide Wheels Russia" or PJSC "ChKPZ". Receiver OOO TD Avtotechnology. Lighting equipment OOO "Atlanta". Floor level crane OOO "VBK Vostok"

Technical Specifications

Number of axles	4 pc
Type of semi-trailer	Tram; heavy haulage; sorting; flatbed; container; general cargo carrier
Climatic version	UHL
Base machine type	truck
Base machine type	truck
Gross weight	72 t
Type of semi-trailer	Heavy hauler
Maximum height	4300 mm
Width	2550...3300 mm
Maximum length	18500 mm
Axle load capacity	10...12 t
Rear track	1860...2068 mm
Front track	1860...2068 mm
Base	3150...9400+1300...2600+1300...2600+1300...2600
Scope of application	Designed for transportation of construction and road equipment, other indivisible cargoes weighing 20 tons and more, containers of various types, including containers and tank containers, detachable tanks, detachable tank bodies designed for the transporta
Reliability parameters	Average service life before the first major overhaul under the first category of operating conditions in compliance with all operating and maintenance rules specified in the operating manual - not less than 100,000 km; MTBF under the first category of cond
Warranty period	B1/B8 2100/900 MHz
Vehicle kerb weight	6000...16000 kg
Technically permissible maximum mass of the vehicle	58000...72000 kg
Technically permissible maximum load on the coupling ball bar	17652-23536
Ergonomic parameters	Paint coatings used for the exterior surfaces of semi-trailers, allow the possibility of painting or repainting them with natural drying paints; the force required to lift the spare wheel does not exceed 500 N (50 kgf). When using the mechanism

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
