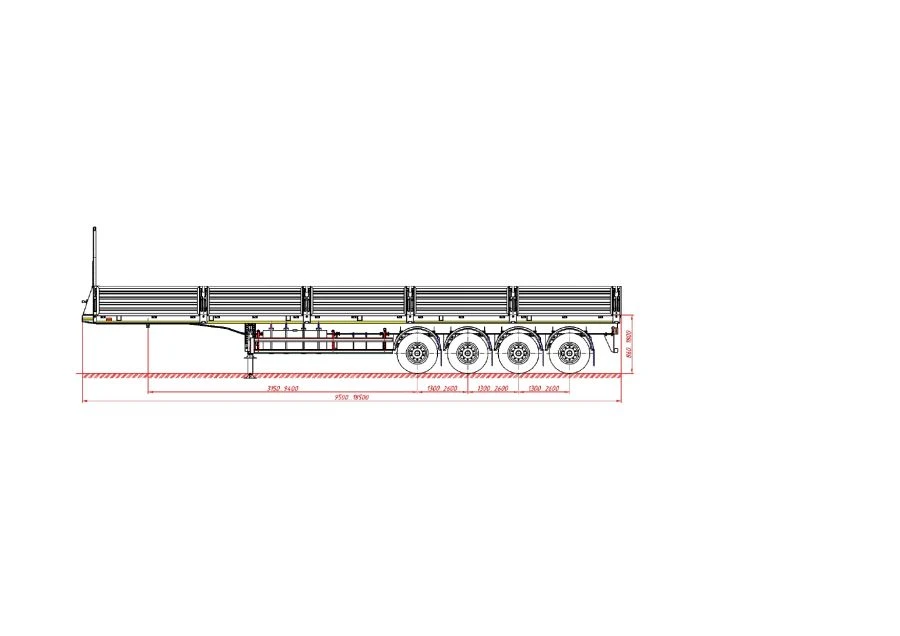

Semitrailer 98132A (loading space design - supporting frame, platform, front shield, sides)

Heavy Duty Trailers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Semitrailer 98132B (loading space design - load-bearing frame, platform, front shield, sides)

The trucks are designed for carriage of assortment and other long cargoes, with container locks installed - containers of various types, including containers and tank containers, removable tanks, removable tank bodies designed for carriage of dangerous goods. Technically permissible maximum weight of the vehicle is 42-52 tonnes. Loading space - load-bearing frame with all-metal open platform, with front protective shield, removable sides. Coupling kingpin with diameter of 50.8 mm or 88.9 mm. Axles 9 tonnes manufactured by "Plant" Ltd. or Axle unit 9 tonnes. BPV-Ost Ltd. Tyres 385/55 R22,5; 385/65 R22,5 manufactured by JSC "Kordiant"/OJSC "Nizhnekamsk Tyre Plant CMK". Wheel discs manufactured by OOO "AccuRide Wheels Russia" or PJSC "ChKPZ". Receiver manufactured by OOO TD "AUTOTECHNOLOGIA". Lighting equipment manufactured by OOO "Atlanta". Floor level crane manufactured by VBK Vostok Ltd.

Technical Specifications

Type of semi-trailer	Onboard
Gross weight	52 t
Base machine type	truck
Number of axles	4 pc
Base machine type	truck
Climatic version	UHL
Type of semi-trailer	General purpose; flatbed; container carrier
Front track	1860...2068 mm
Rear track	1860...2068 mm
Axle load capacity	8...9 t
Maximum length	18500 mm
Width	2550...3300 mm
Maximum height	4000 mm
Technically permissible maximum load on the coupling ball bar	9807...15691 kg
Technically permissible maximum mass of the vehicle	42000...52000 kg
Vehicle kerb weight	6000...16000 kg
Ergonomic parameters	Paint coatings used for the exterior surfaces of semi-trailers, allow the possibility of painting or repainting them with natural drying paints; the force required to lift the spare wheel does not exceed 500 N (50 kgf). When using the mechanism
Warranty period	B1/B8 2100/900 MHz
Reliability parameters	Average service life before the first major overhaul under the first category of operating conditions in compliance with all operating and maintenance rules specified in the operating manual - not less than 100,000 km; MTBF under the first category of cond
Scope of application	Designed for transportation of construction and road equipment, as well as other indivisible cargoes weighing 20 tons and more, containers of various types, including containers and tank containers, detachable tanks, detachable tank bodies, designed for th
Base	3150...9400+1300...2600+1300...2600+1300...2600

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
