Available for Import

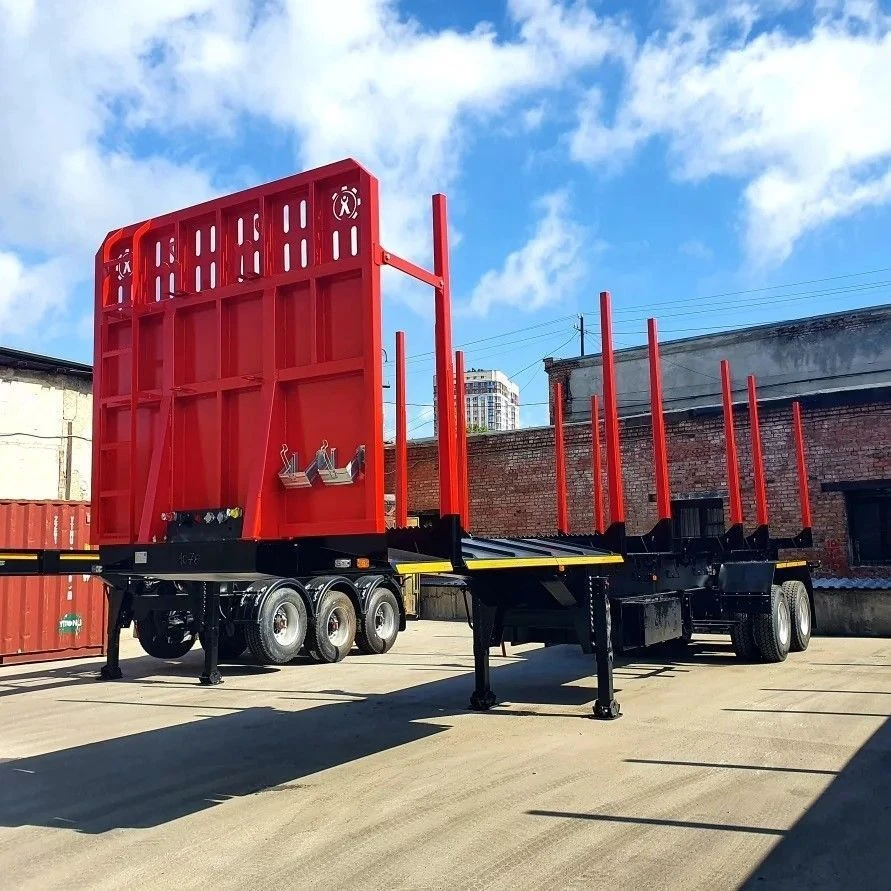

Semitrailer 98131D from Russia

Heavy Duty Trailers

Manufacturer: NOVOSIBARZ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Semi-Trailer 98130C for Transporting Long Goods Semitrailer 98131D (loading space design - load-bearing frame, platform, cones, front shield) Semitrailer 98131D (loading space design - load-bearing frame, cones, front shield)

Description

The trucks are designed for carriage of assortment and other long cargoes, with container locks installed - containers of different types, including containers and tank containers, removable tanks, removable tank bodies designed for carriage of dangerous goods. Technically permissible maximum weight of the vehicle is 48 tonnes. Loading space - load-bearing frame with or without all-metal open platform, with or without front protective shield, with or without length-sliding / width-sliding chocks.

Coupling kingpin diameter 50.8 mm or kingpin diameter 88.9 mm. Axles 12 tonnes manufactured by "Plant" Ltd. Tyres 11 R22,5; 12,00 R20; 295/80 R22,5; 315/80 R22,5 produced by JSC "Cordiant"/ LLC "Nizhnekamsk Tyre Plant CMK" / LLC "Nortek" / JSC "Omskshina".

Wheel discs manufactured by LLC AccuRide Wheels Russia or PJSC ChKPZ. Receiver manufactured by OOO TD "AUTOTECHNOLOGIA". Lighting equipment manufactured by OOO "Atlanta".

Floor level crane manufactured by VBK Vostok Ltd.

Specifications

Type of semi-trailer

Sorting truck; flatbed truck; container truck

Maximum height

4300 mm

Width

2550...3300 mm

Maximum length

16500 mm

Axle load capacity

B1/B8 2100/900 MHz t

Base machine type

truck

Rear track

1860...2068 mm

Front track

1860...2068 mm

Number of axles

2 pcs

Technically permissible maximum load on the coupling ball bar

23536

Technically permissible maximum weight of the vehicle

48000 kg

Vehicle kerb weight

6000...14000 kg

Base

3200...9500+1300..2100

Scope of application

Designed for transportation of assorted and other long cargoes, with installed container locks - containers of various types, including containers and tank containers, detachable tanks, detachable tank bodies, designed for transportation of cargoes of vari

Reliability parameters

Average service life before the first major overhaul under the first category of operating conditions in compliance with all operating and maintenance rules specified in the operating manual - not less than 100,000 km; MTBF under the first category of cond

Warranty period

B1/B8 2100/900 MHz

Ergonomic parameters

Paint coatings used for the exterior surfaces of semi-trailers, allow the possibility of painting or repainting them with natural drying paints; the force required to lift the spare wheel does not exceed 500 N (50 kgf). When using the mechanism

Climatic version

UHL

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
