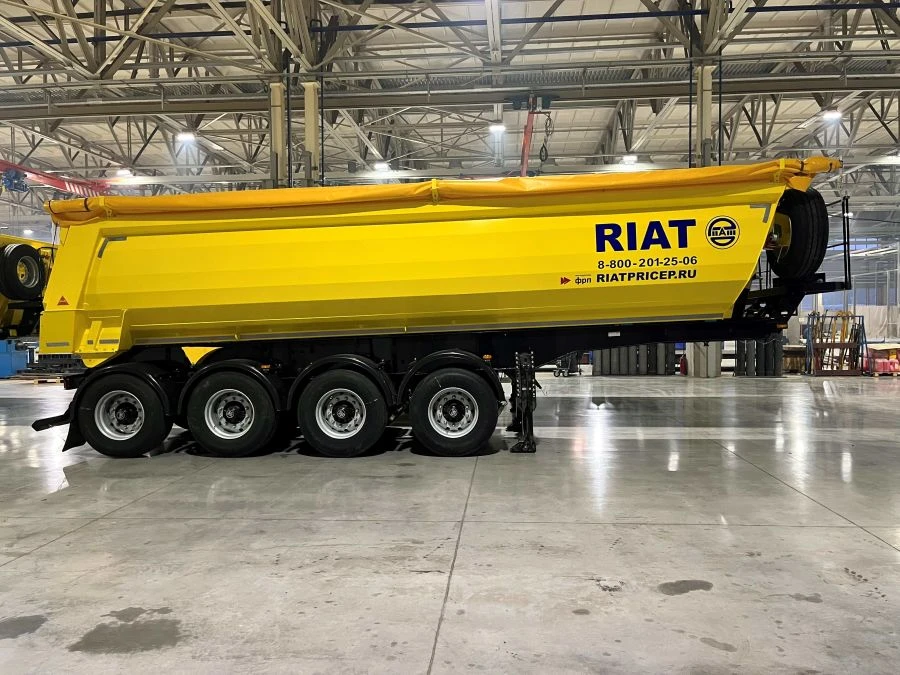

Semi-trailer - tipper, modification 924940, configuration 924940-33H1, with tyres NT-101 (OOO "NZGSH"), wheel discs 396-

Diverse Cargo Trailers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Semi-trailer - tipper, modification 924940, configuration 924940-33H1. Overall dimensions of the semi-trailer (DxWxH): 10 530x2550x3340mm. Internal dimensions of the body (DxWxH): 8960x2290x1615 mm. Cargo volume, 33 cubic metres. Mass indicators: Curb weight of the trailer: 9750 kg. Payload: 42750kg. GVW: 52500kg. GVW load: 12,500kg. Bogie load: 40,000kg. TMS height: 1200/1300 mm. Unloading direction: Backwards. Platform lift angle: 4547. Track: 2045 mm. The omega-shaped cross-section of the platform ensures a lower centre of gravity of the loaded semi-trailer compared to other types of HALF-PIPE cross-sections. The tipping axis of the platform on the frame is located with a slight offset from the axis of the suspension pneumatic springs attachment to the frame. This increases the stability of the semi-trailer when unloading. Increased service life of the semitrailer metal structure due to the use of high-strength steels.

Technical Specifications

Rear track	2045 mm
Front track	2045 mm
Load on the SSA	12500 kg
Gross weight	52500 kg
Payload	42750 kg
Cargo volume	33

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
