Available for Import

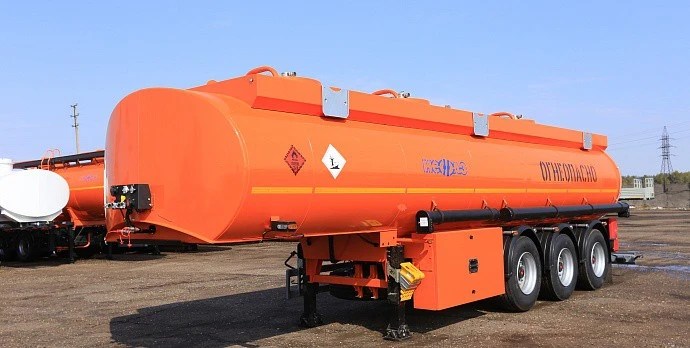

Semi-trailer tank-trailer for oil products PTC NEFAZ 96931-07, without pump unit

Diverse Cargo Trailers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The tank semi-trailer is designed for transportation and short-term storage of light oil products. PTC NEFAZ 96931-07, drum brake system, g / d up to 9 tonnes on each axle. Technically permissible maximum mass on each axle, starting from the front axle,kg: 6786...7493/ 6786...7494/ 6787...7493. The tank is elliptical in shape, with the number of compartments from 1 to 5, calibrated. The tank is equipped with a spare parts drawer, pencil cases for stowing pressure-suction hoses, grooved platform in the neck area with a folding handrail and a ladder. Three-axle bogie with single-axle coupling. The suspension is dependent, pneumatic, with a lifting front axle. The support device serves as a front support for the PPP uncoupled from the tractor. Braking systems: working - with pneumatic two-conductor drive, drum-type brakes of all wheels, with EBS; parking - with drive from spring energy accumulators to the brakes of the wheels of the middle and rear axles.

Technical Specifications

Number of axles	3 pc
Tires	385/65R22.5 425/65R22,5 425/85R21 385/55R22,5
Width	2550 mm
Wheel track	2040 mm
Climatic version	W,T
Type of product according to PP RF 616	Tank trailers and semi-trailers for transportation of oil products, water and other liquids
Equipment	96931-07
GVW load on the first axle	6786...7493 kg
GVW load on the second axle	6786...7494 kg
GVW load on the third axle	6787...7493 kg
Load on the SSA	8630...10750 kg
Length	10050...10350 mm
Height	3050...3530 mm
Base	4780...5585 mm
Nominal capacity	27000...28000 l
Gross weight	31110...32080 kg
Curb weight	7600...7990 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
