Available for Import

Semi-trailer-tank FOX TANK RTC 877721 configuration 11 for the transport of dangerous goods according to ADR classification p. 4

Liquid Transport Trailers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Semi-trailer-tank FOX TANK RTC 877721 configuration 12 for the transport of dangerous goods according to ADR 4.3.4.1 (products x Semi-trailer-tank FOX TANK RTC 877721 configuration 2.14 for dangerous goods according to ADR 4.3.4.1 (products of chemical indu Semi-trailer-tank FOX TANK RTC 877721 configuration 14 for the transport of dangerous goods according to ADR 4.3.4.1 (products) Semi-trailer tank FOX TANK RTC 877721 configuration 13 for the transport of dangerous goods according to the classification ADR

Description

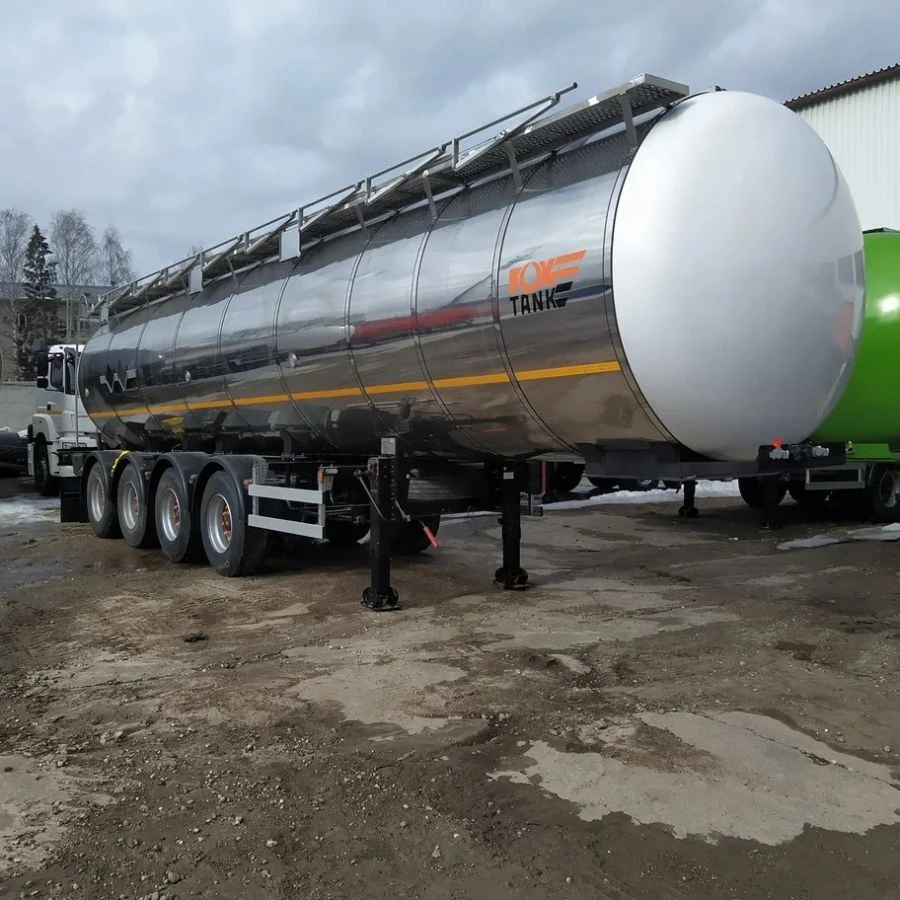

The tank is made of stainless steel aisi 304, self-supporting construction, designed for transportation and temporary storage of chemical products, transported by tractor with 4x2, 6x4 wheel arrangement of Russian or foreign production. Geometric capacity of the tank is from 20 000 to 45 000 litres. The cross-sectional shape of the tank can be round, oval or suitcase. The tank has one or several compartments with wave cutters. The thickness of the vessel wall is not less than 4 mm, the thickness of the bottoms and breakwaters is not less than 4 mm. Service platform in the form of a non-slip walkway on top of the tank around the filler neck made of aluminium alloy, equipped with a folding handrail.

Specifications

Type of product according to PP RF 616 Tank trailers and semi-trailers for transportation of oil products, water and other liquids

Tank width 3 m

Tank height 4 m

Wheel arrangement 4/8,16

Tank length 15 m

Assignment transportation of dangerous goods (chemical products)

Tank material aisi 304

Tank volume 45

Number of axles/wheels 4 pc

Payload 39000 kg

Base tractor 6x2, 6x4

Designation npc4-hp

Type tank semi-trailer

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Share your requirements for a quick response!

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
