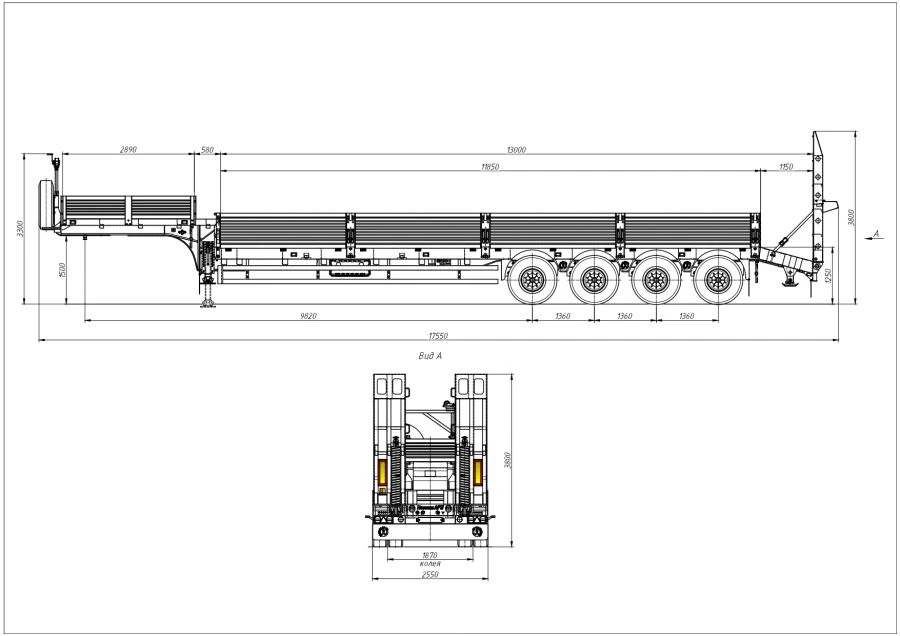

Semi-Trailer 98132V with Load Space Frame, Platform, Sides, and Ramp

Available for Import

Semi-Trailer 98132V for Transporting Construction and Road Equipment

Heavy Duty Trailers

Manufacturer: NOVOSIBARZ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for transporting construction and road equipment, other indivisible cargoes weighing 20 tonnes and more, containers of various types, including tank containers, detachable tanks, detachable tank bodies designed for transporting dangerous goods. The technically permissible maximum mass of the vehicle is 58-72 tonnes. Loading space - load-bearing frame with all-metal open platform, with ladders, removable sides.

Coupling kingpin 50.8 mm or 88.9 mm in diameter. Axles 12 tonnes manufactured by "Plant" Ltd. Tyres 11 R22,5; 12,00 R20; 14,00 R20; 235/75 R17,5; 275/70 R22,5; 295/80 R22,5; 315/70 R22,5; 315/80 R22,5; 385/55 R22,5; 385/65 R22,5 produced by JSC "Kordiant"/ LLC "Nizhnekamsk Tyre Plant CMK"/ LLC "Nortek"/JSC "Omskshina".

Wheel discs of OOO "AccuRide Wheels Russia" or PJSC "ChKPZ". Receiver OOO TD Avtotechnology. Lighting equipment OOO "Atlanta".

Floor level crane OOO VBK Vostok.

Specifications

Number of axles

4 pcs

Type of semi-trailer

Tram; heavy hauler; flatbed; container carrier

Climatic version

UHL

Base machine type

truck

Gross weight

72 t

Type of semi-trailer

Heavy hauler

Maximum height

4300 mm

Width

2550...3300 mm

Maximum length

18500 mm

Axle load capacity

10...12 t

Rear track

1860...2068 mm

Front track

1860...2068 mm

Base

3150...9400+1300...2600+1300...2600+1300...2600

Scope of application

Designed for transportation of construction and road equipment, other indivisible cargoes weighing 20 tons and more, containers of various types, including containers and tank containers, detachable tanks, detachable tank bodies designed for the transporta

Reliability parameters

Average service life before the first major overhaul under the first category of operating conditions in compliance with all operating and maintenance rules specified in the operating manual - not less than 100,000 km; MTBF under the first category of cond

Warranty period

B1/B8 2100/900 MHz

Vehicle kerb weight

6000...16000 kg

Technically permissible maximum mass of the vehicle

58000...72000 kg

Technically permissible maximum load on the coupling ball bar

17652-23536

Ergonomic parameters

Paint coatings used for the exterior surfaces of semi-trailers, allow the possibility of painting or repainting them with natural drying paints; the force required to lift the spare wheel does not exceed 500 N (50 kgf). When using the mechanism

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
