Semi-trailed sprinkler washer PM-05 with a capacity of 5 cubic metres

Liquid Transport Trailers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

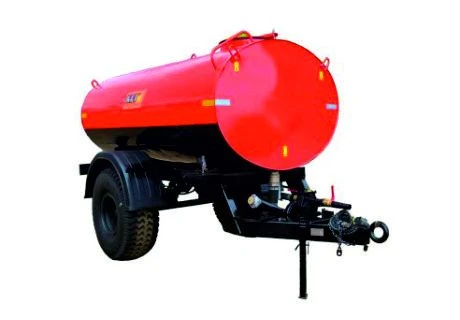

Machine water-washing semi-trailer PM-05. The tank with a capacity of 5,0 m³ is mounted on an unsprung semi-trailer. The machine is designed for washing and watering of roads and pavements, watering of green plantings and lawns, fire extinguishing, washing of any vehicles, roadblocks, road signs, a number of other works and is aggregated with tractors with tractive effort of 1,4 t.s or 2,0 t.s (MTZ-82.1, MTZ-80.2 YUMZ-6, MTZ-1221 and others).
Advantages:
- Inside the cistern there are installed breakwaters, to damp water oscillations;
- A filter of coarse water filtration is installed inside the tank;
- Reliable supports for fixing the tank to the semi-trailer;
- Installation of a tap on the drain hole (possibility of watering and draining water without fuel consumption);
- Installation of wheels with discs with increased reserve for operational speed and load capacity (disc thickness 10 mm, see information on wheels);
- Reinforced construction of the semi-trailer;
- Electrical wiring in a corrugation;
- Cardan with plastic protection - cover;
- Quality nozzles...

Specifications

Type of product according to PP RF 616 Tank trailers and semi-trailers for transportation of oil products, water and other liquids

Pump capacity in nominal mode, l/s 8...13

Climatic version UHL1

Type of product according to PP RF 616 Tank trailers and semi-trailers for transportation of oil products, water and other liquids

Wheel arrangement Uniaxial

Equipment front pipe with nozzles and taps, water supply hose from pump to front pipe, cardan, electrics with lights (parking lights, brake lights, turn signals), brake shoes, equipment data sheets.

Base machine type can be coupled with tractors with tractive effort of 1.4 t.s or 2.0 t.s (MTZ-82.1, MTZ-80.2 YUMZ-6, MTZ-1221 and others).

Wheel track 1800 mm

Tank length 4 m

Tank width 2.3 m

Tank height 2.2 m

Tank length 4 m

Tank width 2.3 m

Tank height 2.2 m

Thermal insulation no

Base tractor can be coupled with tractors with tractive effort of 1.4 t.s or 2.0 t.s (MTZ-82.1, MTZ-80.2 YUMZ-6, MTZ-1221 and others).

Designation PM-05

Type PM-05

Payload 5000 kg

Assignment Designed for washing and watering of roads and sidewalks, watering of green areas and lawns, fire extinguishing, washing of any vehicles, roadblocks, road signs, and a number of other works.

Tank material Steel

Number of axles/wheels 2

Type of product according to PP RF ?616 Tank trailers and semi-trailers for transportation of oil products, water and other liquids

Front/rear track 1800

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
