Available for Import

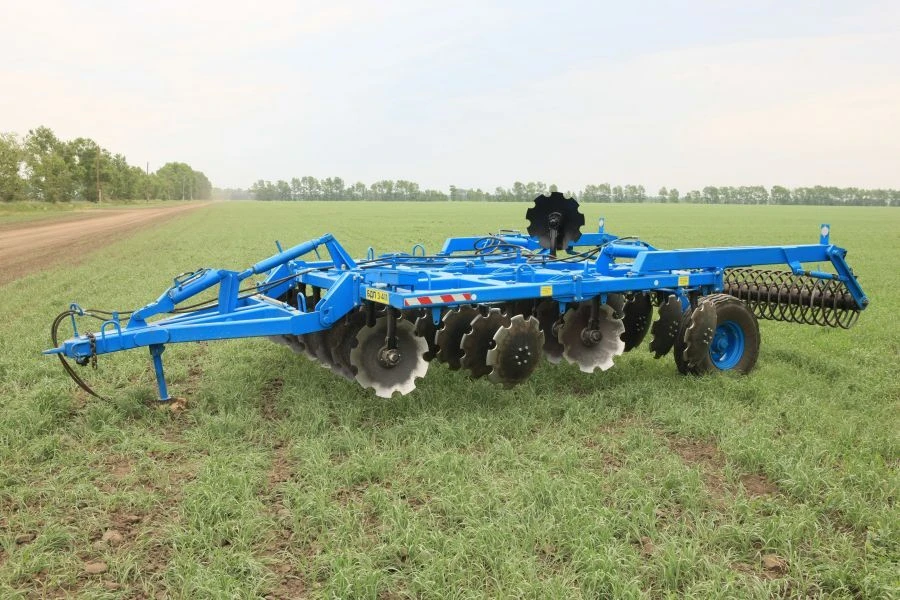

Semi-mounted disc harrow DANA BDP-3*4M and its modifications: BDP-3*4M RZZ.20.00.000 (with spiral roller); BDP-3*4M RZZ.2.
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The working width is 3 metres.
In comparison with two-row four-row harrows provide more efficient tillage and require fewer passes.
Harrow productivity - up to 3.84 hectares per hour, with tractor power 150-250 hp: MTZ 1523, 2022, HTZ-150 and others.
Designed for resource-saving pre-sowing and main tillage to a depth of 15 cm for grain, industrial and forage crops. It is used for crushing, levelling and compaction of soil, rejuvenation of meadows and pastures. Destroys weeds, shreds crop residues after harvesting crops..
In comparison with two-row four-row harrows provide more efficient tillage and require fewer passes.
Harrow productivity - up to 3.84 hectares per hour, with tractor power 150-250 hp: MTZ 1523, 2022, HTZ-150 and others.
Designed for resource-saving pre-sowing and main tillage to a depth of 15 cm for grain, industrial and forage crops. It is used for crushing, levelling and compaction of soil, rejuvenation of meadows and pastures. Destroys weeds, shreds crop residues after harvesting crops..
Specifications
Type of product according to PP RF 616
Disc harrows
Working width
3.2 m
Distance between rows
850 mm
Weight
3180 kg
Number of implement rows
32 pc
Material of working elements
32GR.
Material of frame structures
09G2S
Harrow type
Disk
Working width
3.2 m
Height
1420 mm
Width
3490 mm
Length
6960 mm
Operating speed
10...12
Capacity per hour
3.84
Working width
3.2 m
Number of working orans
32 pc
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
