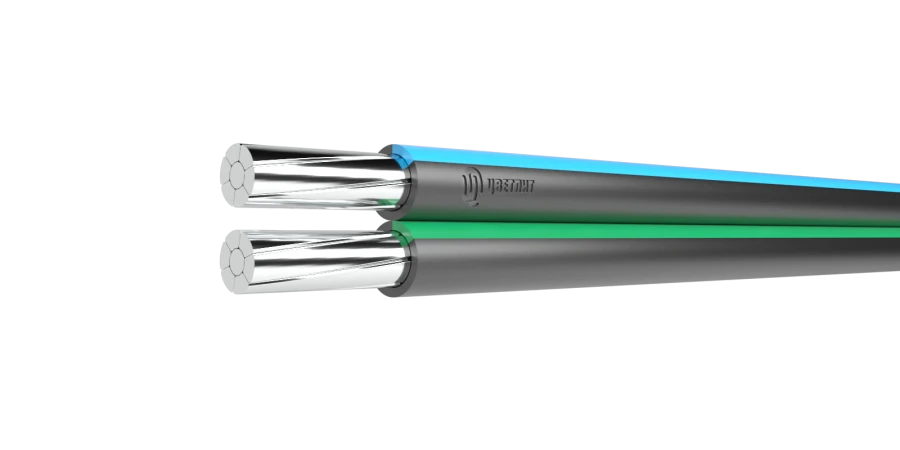

Self-Supporting Insulated Wires for Overhead Power Lines SIP-4 - Reliable Energy Transmission
Manufacturer:
TSVETLIT LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Self-supporting insulated wires for overhead power lines, with aluminium conductive cores, without a supporting element, with insulation made of light-stabilised cross-linked polyethylene for rated voltage up to 0,6/1 kV inclusive, with the number of main cores from the range of 2, 3, 4, cross-section of main cores from 16 mm² to 150 mm², brand CIP-4; self-supporting insulated wire with aluminium conductors, insulated with light-stabilized cross-linked polyethylene, not spreading combustion, with the number of cores 2 and 4, nominal cross-section from 16 mm² to 150 mm², mark CIPn-4
Specifications
Calculated weight
139 kg
Sheath material
no
Insulation material
Light stabilised silanol crosslinkable polyethylene composition
Core material
aluminium rod
Mark
CIP-4
Number of phase conductors
2 pcs
Insulation material of phase conductors
Light stabilised silanol crosslinkable polyethylene composition
Nominal cross-section of phase conductors, sq.mm.
16
Filler material
no
Nominal voltage
660 V
Climatized version
?
Core cross section
16 mm²
Number of cores
2 pcs
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
