Security Magnetic Contact Detector for Gates & Containers - IO 102-20 A3P (3)

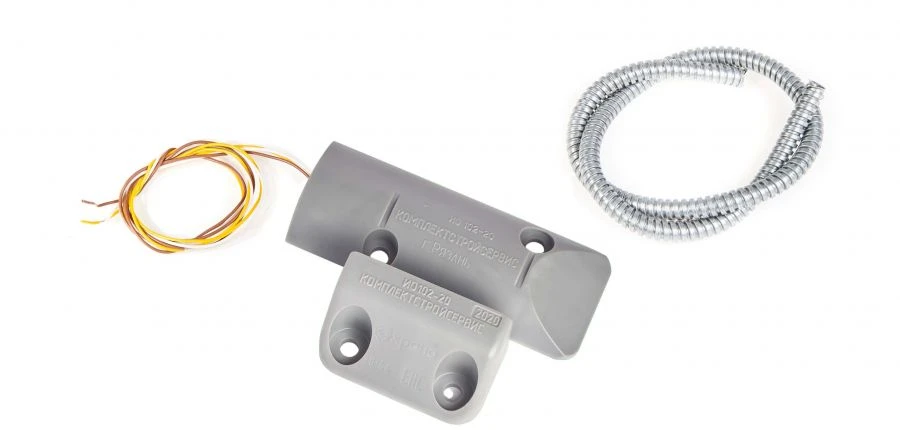

Security Magnetic Contact Detector IO 102-20 A3P (3) for Gate and Container Protection

Manufacturer:Komplektstroyservis LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Security point magnetic contact detector IO102-20 A3P (3). Designed to block garage doors, hangars, railway containers, telephone cabinets and other structural magnetoconductive (metal) and magnetoneuroconductive (aluminium, wood, etc.) elements of buildings and structures to open or displacement with the issuance of alarm notification in the loop of the receiving and control device by opening or closing reed contacts. The housing is plastic, non-disassembling. Metal protective corrugated sleeve.

Specifications

Maximum value of switched power.
10 V
The maximum value of the DC or AC current strength.
0.5 A
The minimum value of the DC or AC current strength.
0.001 A
Operation distance max.
14 mm
