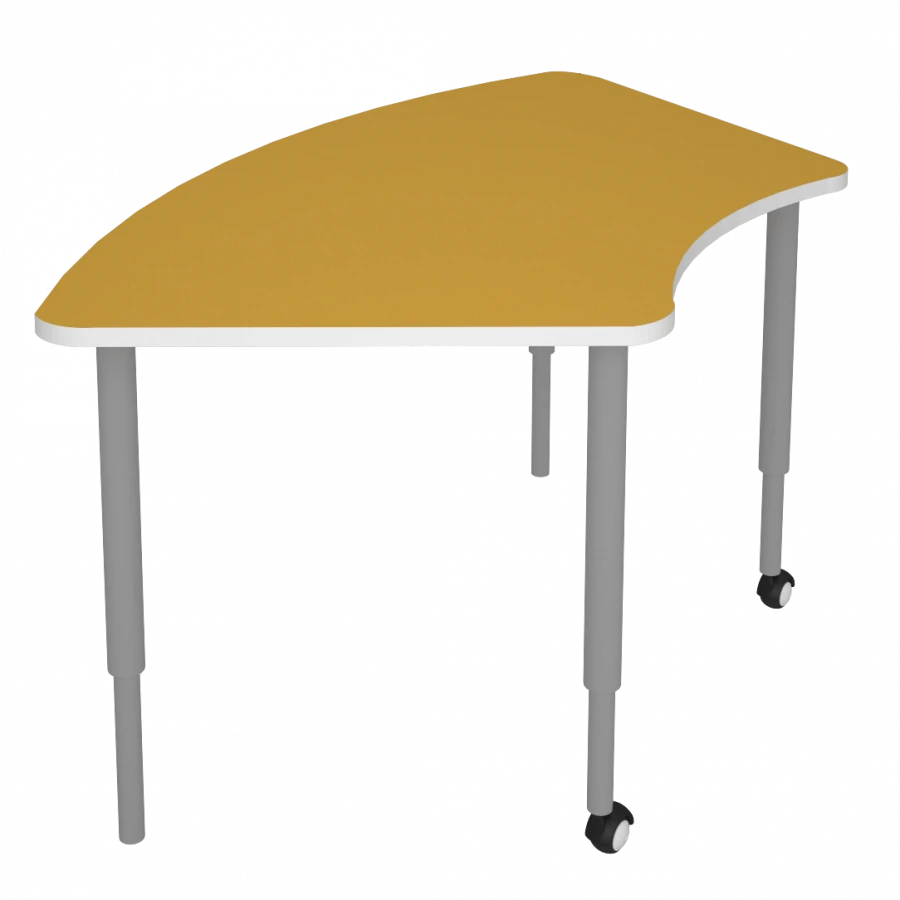

Sectional table ("Duga") type 2, FrSt 2.3-5

Dimensions of the frame 1150h460h558/678mm.The frame has an all-welded construction of metal pipe diameter 40mm thick 1,2mm and strapping trapezoidal shape of metal profile pipe section 25h25mm thick 1,5mm. The metal profile pipe 25x25 has holes for self-tapping screws for fixing the cover to the table frame. The metal leg consists of two pipes with a diameter of 40mm with a thickness of 1.2mm and 32mm with a thickness of 1.5mm have a telescopic connection between them. The 40mm diameter pipe is equipped with a plastic transition tube for rigidity when fixing the pipe in the pipe.The 32mm diameter pipe has 4 through holes, which allows to adjust the leg in different height positions. Two legs are equipped with plastic plugs to prevent damage to the floor covering.And two legs have washers welded on the bottom with M8 threaded rivet to fix the metal soft-stroke wheels 50mm diameter with locking mechanism. The whole frame of the table is powder coated. The cover is LDFP16 mm
