Secondary digital clock CHB-11

Decorative Table Clocks

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

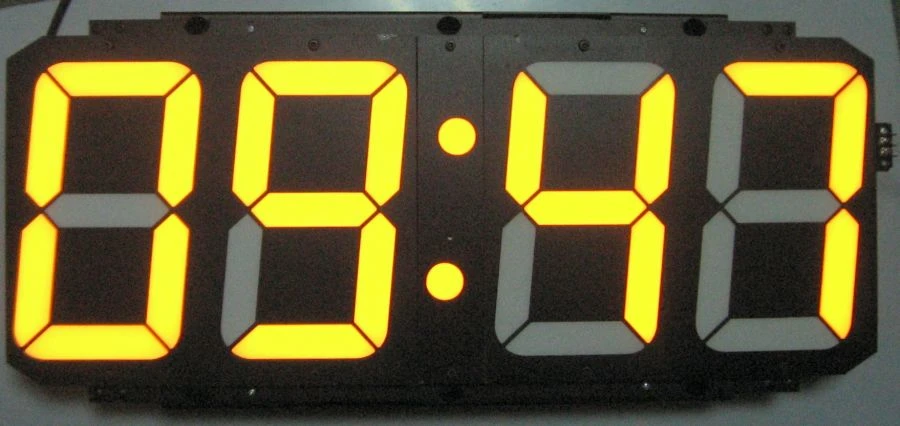

The secondary digital clock CHB-11 (hereinafter referred to as the product) is designed for counting down and displaying the current time. The information is displayed in Arabic numerals on seven-segment indicators. The product is designed for operation in the conditions of underground halls. In terms of resistance to climatic factors during operation the product corresponds to classification group K1 according to OST 32.146-2000, but for operation at temperatures in the range from 0 deg. C to +40 deg. C, without frost and dew. In terms of resistance to mechanical effects occurring in the process of operation, the product corresponds to the classification group MS1 according to OST 32.146-2000. The product can be built into information boards and constructions. Basic technical data: Power consumption, W, not more than 150; Time indication - hours and minutes. The accuracy of time counting is not worse than +/- 1 second per day. Height of digits on LCD indicators, mm,200; Colour of glow - orange; There is a brightness adjustment. There is an automatic adjustment...

Specifications

Size 628x290x90 mm

Mark CHV-11

Displayed information Information displayed in Arabic numerals on seven-segment indicators

For operation at temperatures in the range of 0...40 °C

Power consumption, max. 150 W

Time accuracy not worse than, seconds 1

Time display Hours and minutes

The product can be integrated into information boards and structures. Armoured glass

Height of digits on LCD indicators, mm 200 mm

. Countdown of current time in the absence of mains voltage, day, not less than 10

Product weight 9 kg

Product life 10 a

Signal of external minute pulses - pulse, alternating polarity, amplitude 24V±10%, with duration of each pulse in 1.5...2.5

Setting and changing the current time remotely via the minute pulse line Available, remotely via minute pulse line from FMI-14

Battery discharge indication Available

Indication of absence of correction pulses passage on the board unit Available

Correction of the current time from the metro unified time system Available

Time setting - hours and minutes Yes, by buttons on the scoreboard

There is automatic brightness adjustment Available

Glow color orange

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
