SEAB-2 sheath
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

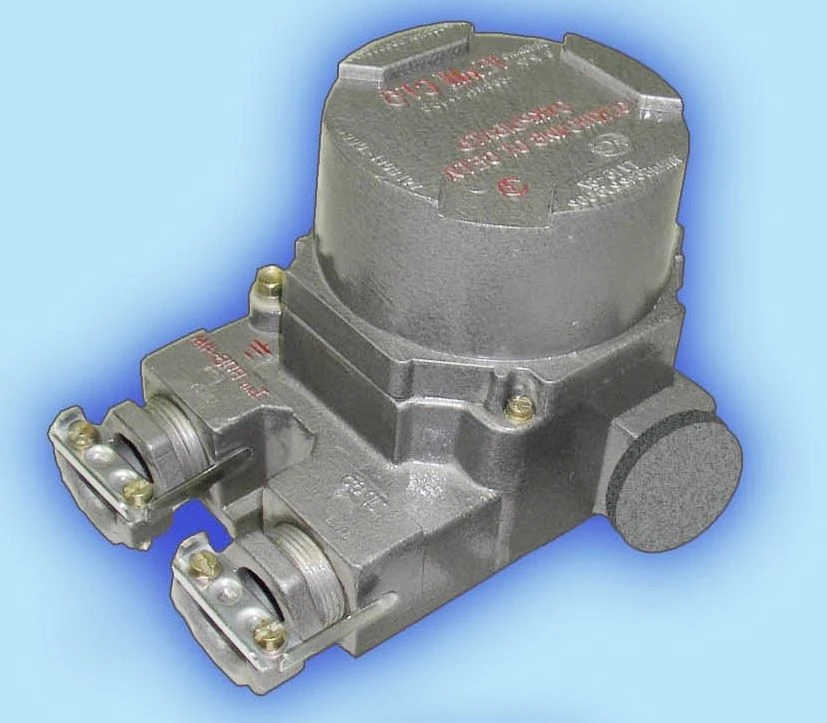

Shells are intended for placing electrical equipment and its elements in them, as well as for protection against contact of the operating personnel to electrical parts of the elements of electrical equipment built into the shells and for protection of these parts from environmental and mechanical influences. With the possibility of installing a heating system and a viewing window. The area of application of the shells - surface and underground premises of coal mines, as well as explosive zones of industrial enterprises, warehouses.
Specifications
Climatic version
OM1;B1.5
Sheath material
COA1;aluminum alloy
Overall dimensions (HxWxH)
190x126x150 mm
Diameter of cables to be fed
130x70 mm
Number of cable glands
2 pc
Size and number of plugs
M27h2 -1pc.
Explosion protection marking
Ex d IIC Gb U;Ex d I Mb U
Degree of protection against external influences
IP66
Weight
2.8 kg
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
