Screw Centre Lathe 1M63H

Manual Metal Lathes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

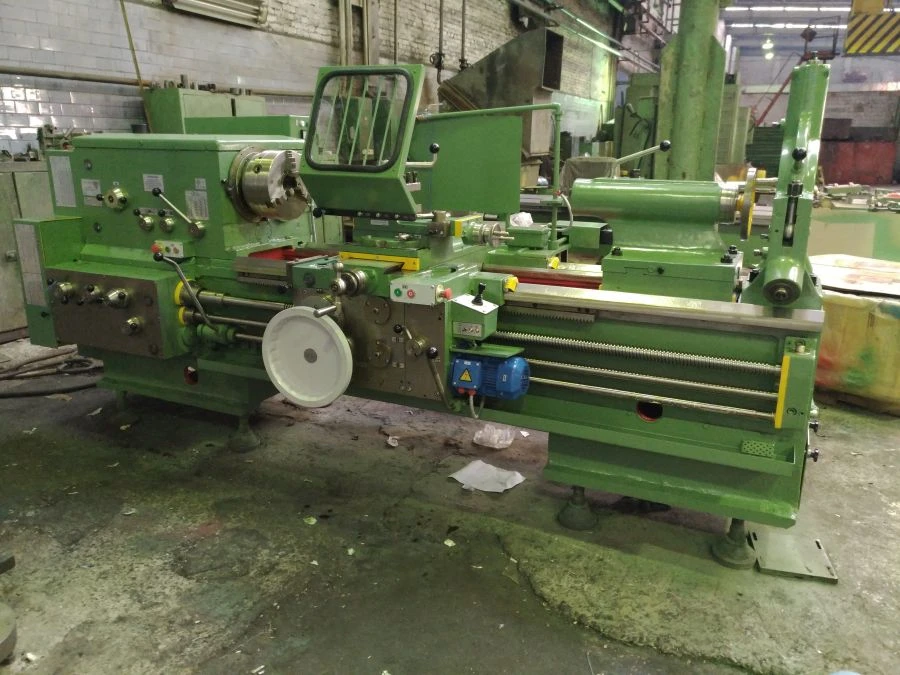

Model 1M63N lathe-turning and screw-cutting machine produced by "RYAZAN STAN" Ltd.
"RYAZANSKY STANKOSTROITEL", Ryazan, Russia, is designed for turning parts with straight, stepped profiles, as well as for threading.
High rigidity, hardened guides and gears guarantee long-lasting accuracy and allows to fully use the capabilities of high-speed and carbide tools when machining both ferrous and non-ferrous metals. The direct coolant supply to the tool allows machining at high cutting conditions.
The machine is equipped with a 4-position toolholder with vertical axis of rotation and manual change of tool positions.
The accuracy class of the machine is H according to GOST 8-82.
Type of climatic execution UHL4 according to GOST 15150-69.

Technical Specifications

Type of product according to PP RF 616	Screw-cutting lathes (universal)
The largest diameter of the workpiece: mounted above the bed:	700 mm
To be machined above the slide	350 mm
Longest workpiece length	750,1500,2000,3000,4000,5000,8000,10000 mm
Flanged spindle end according to DIN	11?
Number of spindle speed steps	22
Spindle speed limits, rpm	10-1250
Feed rates: longitudinal, mm/rev	0,033-5,6
Transverse, mm/rev	0,013-2,064
Cutter slides, mm/rev	0,010-1,76
Thread cutting steps: metric threads	1-224 mm
Inches, threads/inch	28-0,25
Modular, modular	0,25-56
Pitch, pitch dia	112-0,5
Transverse, m/min	2
Main motion drive power, kW	15
Weight, kg	4200 (RMZ 750), 4840 (RMZ 1500), 5100 (RMZ 2000), 5750 (RMZ 3000), 6900 (RMZ 4000), 9000 (RMZ 5000), 11800 (RMZ 8000), 13200 (RMZ 10000)
Overall dimensions, mm	3000x1780x1550 (??? 750), 3740x1780x1550 (??? 1500), 4230x1780x1550 (??? 2000), 5240x1780x1550 (??? 3000), 6240x1780x1550 (??? 4000), 7240x1780x1550 (??? 5000), 10300x1780x1550 (??? 8000), 12420x1780x1550 (??? 10000)
To be worked above the bed	630 mm
Spindle bore diameter	105 mm
Speed of rapid slide movements, longitudinal m/min	5,2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
