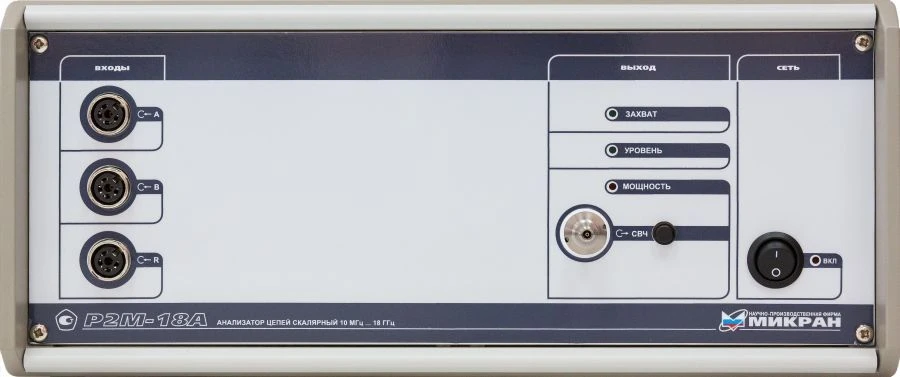

Scalar Chain Analyzer P2M-18A/5 for Accurate Reflection Coefficient Measurements

The P2M-18A/5 scalar circuit analyser is designed for measurements of reflection modulus or voltage standing wave coefficient parameters in a coaxial path, measurements of transmission modulus, simultaneous observation of measured values of transmission and reflection modulus. The analyser can be used as a frequency synthesizer or as a part of automated measurement systems. Field of application - production and control of high-frequency and ultra-high-frequency equipment and devices, research, adjustment and testing of ultra-high-frequency units used in radio electronics, communications, instrumentation, measuring equipment. By metrological characteristics the analyser corresponds to the 1st class of accuracy according to GOST 16423. The analyser functions together with a personal computer (available on a separate order) via a standard Ethernet interface. A programmable switchable electromechanical attenuator is installed.
