Available for Import

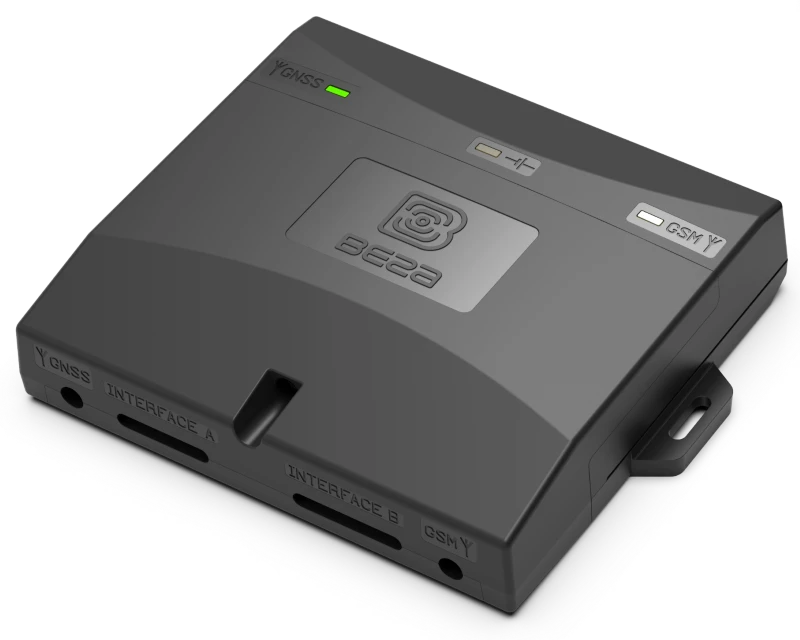

Satellite navigation equipment of "Vega-S ASN" model
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Technical Specifications
| Operating supply voltage | 9...35 V |
|---|---|
| Current consumption at 12 V in operating mode | 0.08...0.3 A |
| Built-in rechargeable battery (Batteries) | 1100 mAh, 3.7V, with extended temperature range |
| Protection against power surges | Up to 200 V |
| Supported navigation systems | Supported navigation systems GLONASS/GPS |
| Number of channels | 72 pc |
| Cold start | Not more than 28 sec |
| Hot Start | Not more than 1 sec |
| Sensitivity | In tracking mode: -162 dBm cold start: -148 dBm |
| Type of modem / network generation | 2G, 3G, 4G |
| Possibility of data transmission via GSM | GPRS, EDGE, UMTS, HSPA, LTE Cat.4 |
| Possibility to select the parameters to be transmitted | Got it |
| Support for data transfer protocols | EGTS, NDTP, Vega, Wialon IPS, Wialon Combine |
| Number of IP addresses to which telemetry information can be simultaneously transmitted | 4 pc |
| Number of SIM cards | 2 pc |
| Possibility to install a SIM chip | Got it |
| Support for multi-profile SIM cards | Got it |
| Operating temperature range | -40...85 °C |
| Degree of enclosure protection | IP51 |
| Overall dimensions of the main unit housing, mm | 127x100x27 |
| Weight of the main unit, kg, not more than | 0,185 |
| Enclosure design with protective cover against unauthorised access to connectors | Got it |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
