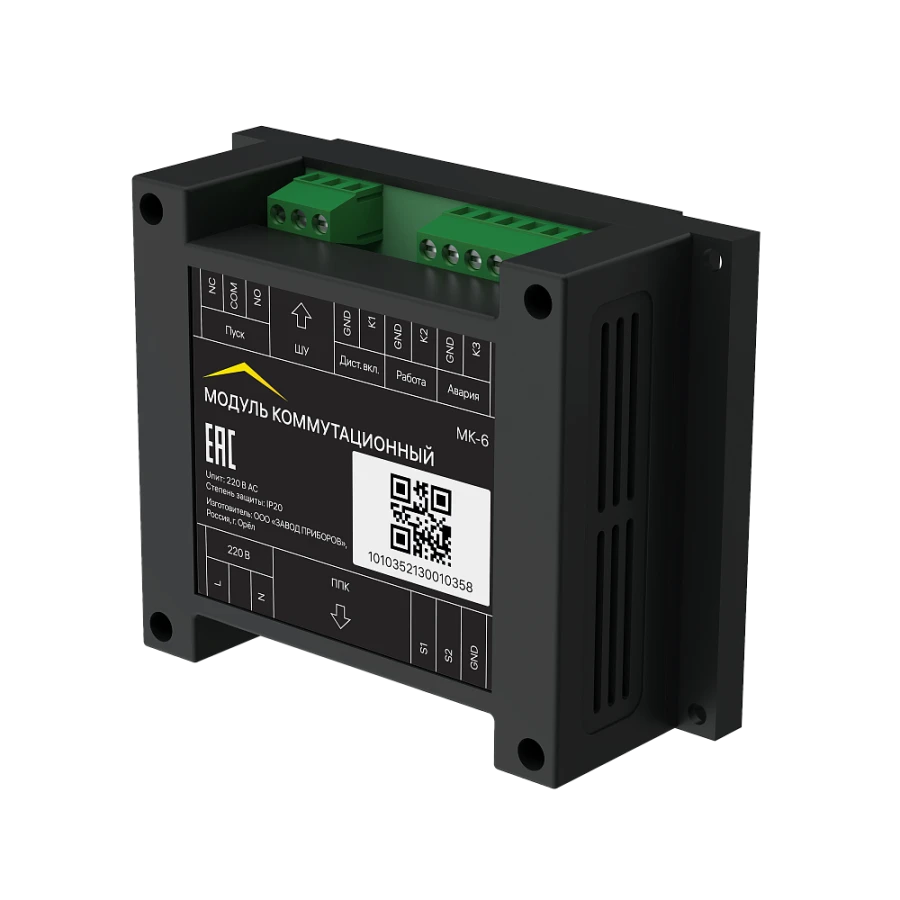

RUBETEK MK-6 Communication Module for Fire Alarm Systems

Available for Import

RUBETEK MK-6 Communication Module for Fire Alarm and Ventilation Control

Fire Alarm Detectors

Manufacturer: RUBETEK RUS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Module switching MK-6 "RUBETEK" is designed to connect to the outputs of the device receiving and controlling fire addressable analogue, control cabinets smoke exhaust fan SHU-DU and other equipment controlled by dry contact.

Specifications

Rated operating voltage

230 V

Consumption current, max.

0.012 A

Maximum switched current

5 A

Number of dry contact outputs

1 pcs

Number of inputs for "Dry Contact" connection

3 pcs

Number of "Dry Contact" control outputs

2 pcs

Operating temperature range

-10...55 °C

Relative humidity at + 40 deg. ?

0...93 %

Degree of enclosure protection

IP20

Dimensions (L x W x H), mm

115x93x40

Weight, not more

60 year

Average MTBF

60000

Average service life

10 year

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
