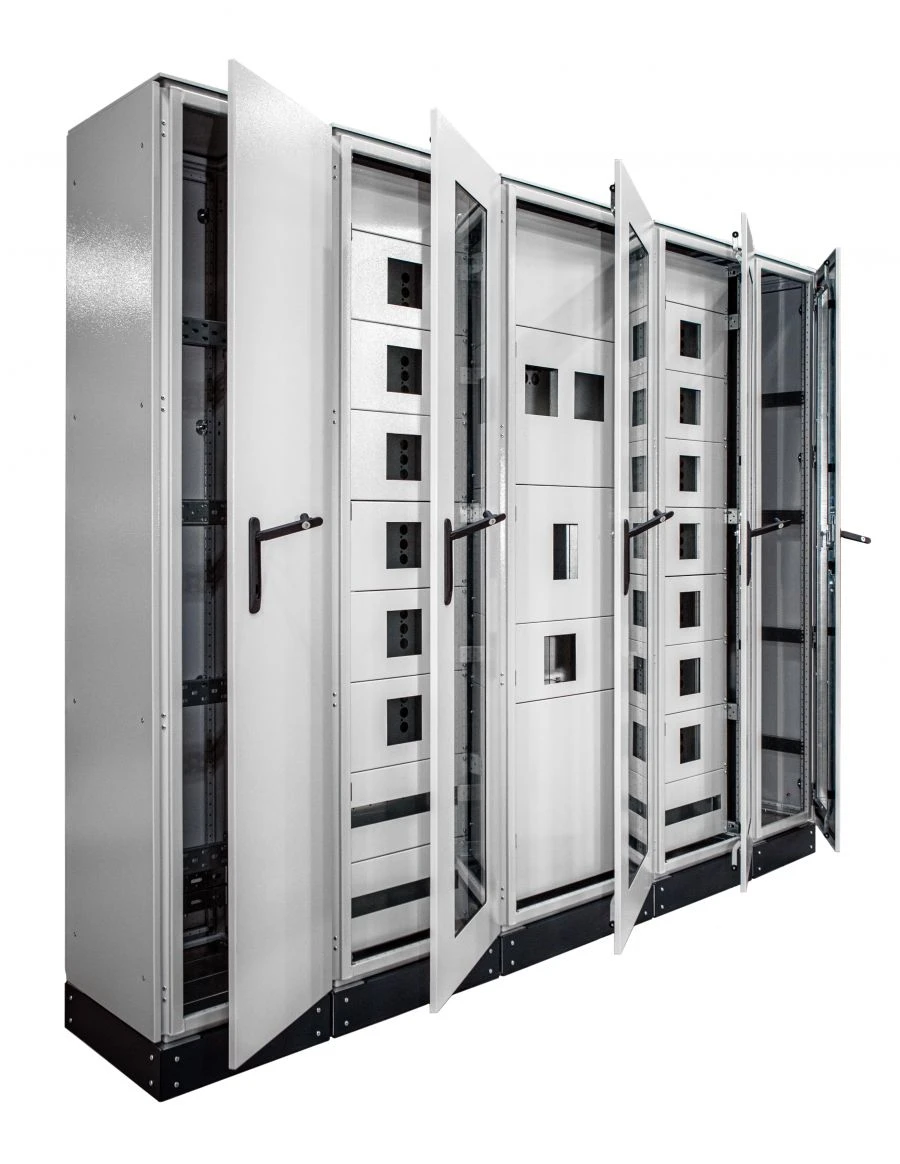

RT series metal cabinets. Empty enclosures for low-voltage complete distribution and control devices

Metal cabinets (empty shells for low-voltage complete distribution and control devices), in which distribution and control equipment is not installed (installed by the customer).
They can be used as a part of complete distribution and control devices for rated voltage up to 1000 V AC with frequency not more than 1000 Hz or 1500 V DC of general purpose according to GOST R 51321 and are designed for indoor installation.
The cabinet is a prefabricated metal structure consisting of a frame, walls, roof, plinth and door(s). Walls, roof, base/plinth are connected to the frame by means of screw joints. The design of the enclosure provides for the possibility of servicing the distribution and control equipment installed in it from one or both sides. It is possible to connect cabinets in one row by means of screws.
Types of climatic versions of cabinets - UHL4, U3, M3, M1, HL1, U1, HL3, T3, TV3 according to GOST 15150.
