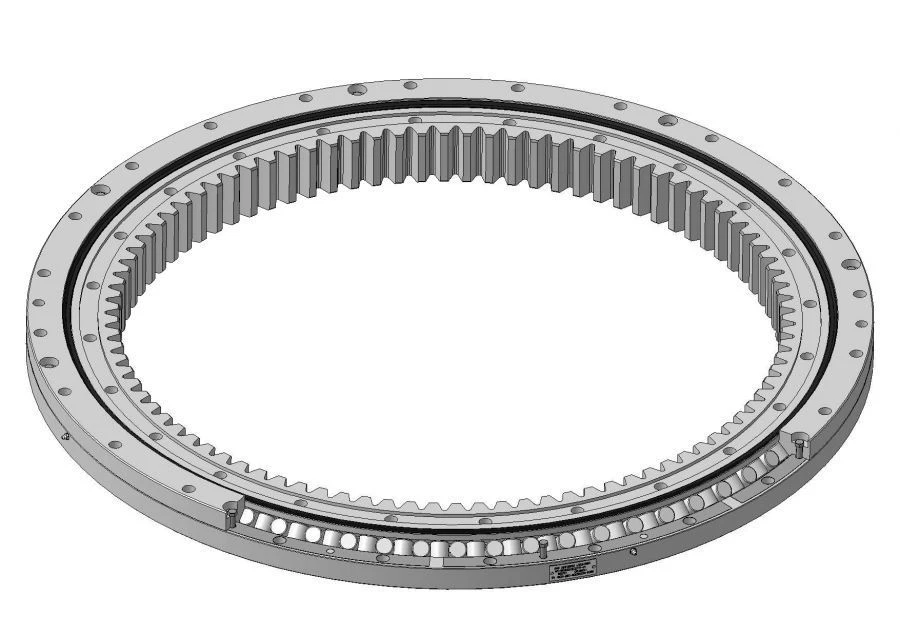

Rotating Support OP-1190.2.2.8.3.R U1 for Low-Speed Rotating Applications

Support rotary OP-1190.2.2.8.3.R U1 is designed for use as a unit that provides rotation of the rotary part of the product relative to the non-rotary part with a frequency of not more than 16 rpm and the transfer of loads (load moment, axial and radial forces). Type of construction - roller; Type of meshing - internal; Modulus of meshing - 8 mm; Number of teeth - 118 pcs; Material of rings - Steel 55 GOST 1050-88 (normalisation); Weight -167 kg.
