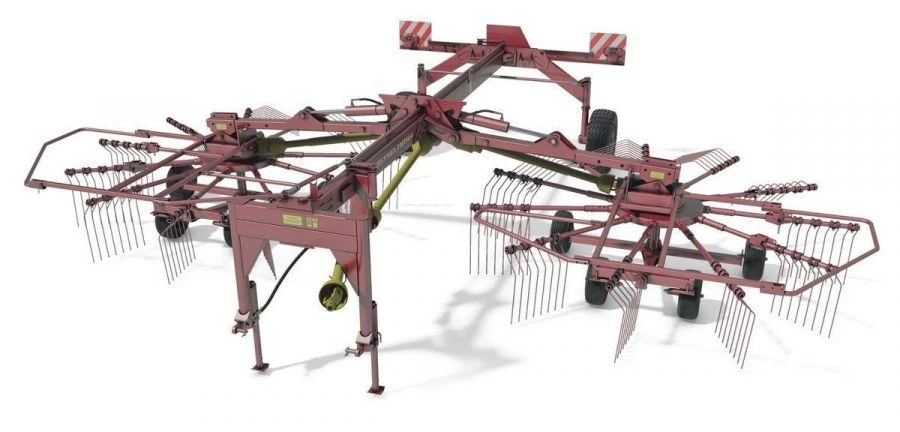

Available for ImportRotary Towed Rake Kolibri Duo 807 for Efficient Hay Collection
Manufacturer:ROSTSELMASH OJSC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The Kolibri Duo trailed rotary rake is designed for raking grass from the swaths into swaths, wrapping and doubling hay swaths. The rakes are used in all zones of flat land use on fields with levelled relief, and are not intended for use on stony soils. The slope of harvested areas should not exceed 6 degrees and moisture content of harvested crops should not exceed 70%. The rake is trailed and can be used with tractors of traction class 1,4 tonnes .
Specifications
Type of product according to PP RF 616
Hay machines
Width
8200 mm
Height
2200 mm
Capacity, ha/hour
8
Working width
7.3...8.1 m
Length
9200 mm
Operating speed
10
Weight
2600 kg
Transverse stability angle in combination with tractor, deg., not less
30
Power consumption, max.
40 kV
Tractor PTO speed, rpm
540
Number of service personnel
1
Completeness of crop raking into swath, at least
98 %
Total losses to yield, not more
2 %
Mass density of the formed swath, kg/m3, max.
B1/B8 2100/900 MHz
Reliability coefficient of technological process performance, not less than
0.98
Operational labour intensity of monthly maintenance, not more than
0.2
Operational time availability factor
0.98
Readiness factor taking into account organizational time
0.97
MTBF of complexity group II and III of a single product, hours, not less
100
Service life
7 year
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
