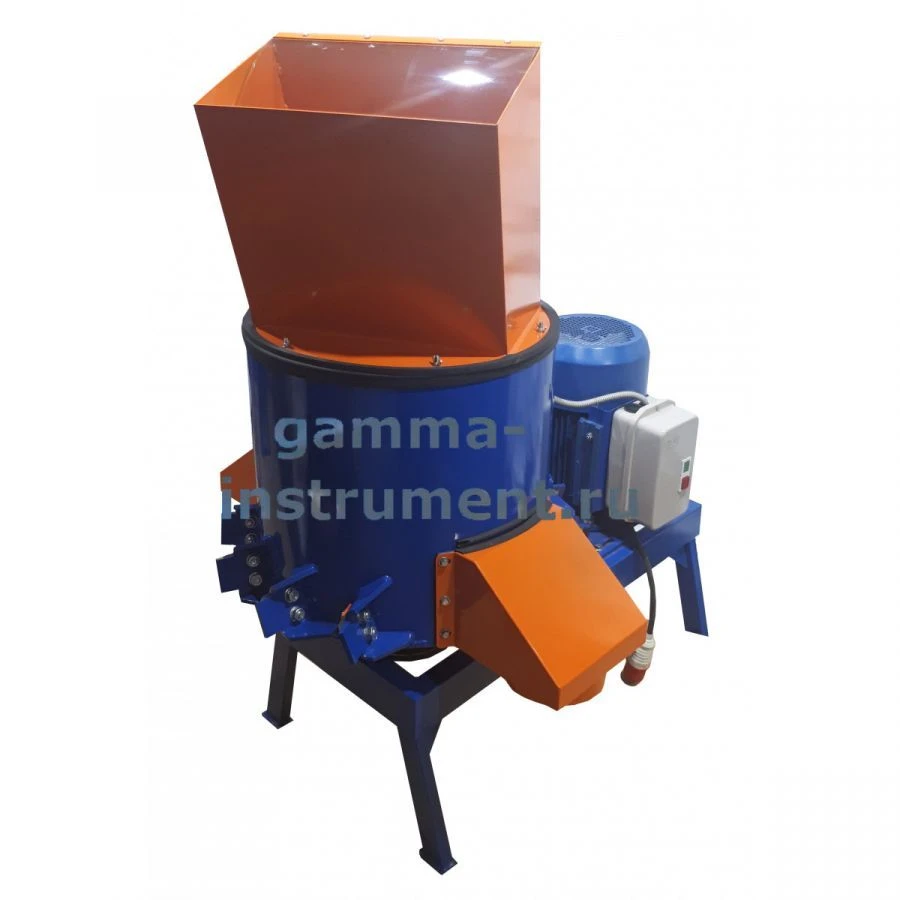

Rotary mechanical shredder (crusher) MI 700-380-12-UHL4

Special Purpose Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Rotor mechanical shredders (crushers), model series MI, MIG - crushing equipment for primary and subsequent size reduction of a wide range of materials (plastic products with a wall thickness not more than 4 mm, foam, foam rubber, foam rubber, syntepon, expanded polystyrene, polymer films, polypropylene bags and waste). The crushers are equipped with high-speed rotating knives, effectively crushing the material to flakes and shavings. They are intended for crushing of materials, production waste (for the purpose of reuse of raw materials - recycling), at small and medium-sized enterprises, as well as for use in various sectors of national economy and exports.

Specifications

Voltage 380 V

Weight, not more 360 kg

Service life, at least 5 a

Drive type Belt

Rotor dimensions 570 mm

Receiving opening dimensions (L x W), mm 500x300

Working chamber diameter 630 mm

Number of knives, rotary/stationary, pcs. 2/6

Crusher capacity, kg/h up to 200

Size of maximum piece of material to be loaded, mm For plastic products, the wall thickness must not exceed 4 mm

Output fraction size 6...40 mm

Nominal rotor speed 1500

Circumferential speed of rotating rotor blades 45

Adjustable width of exit slits 0.5...5 mm

Installed power nominal 15 kW

Overall dimensions (L x W x H), mm 1300x800x1700

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
