Rotary Disc Shut-off Valves for Efficient Flow Regulation and Control

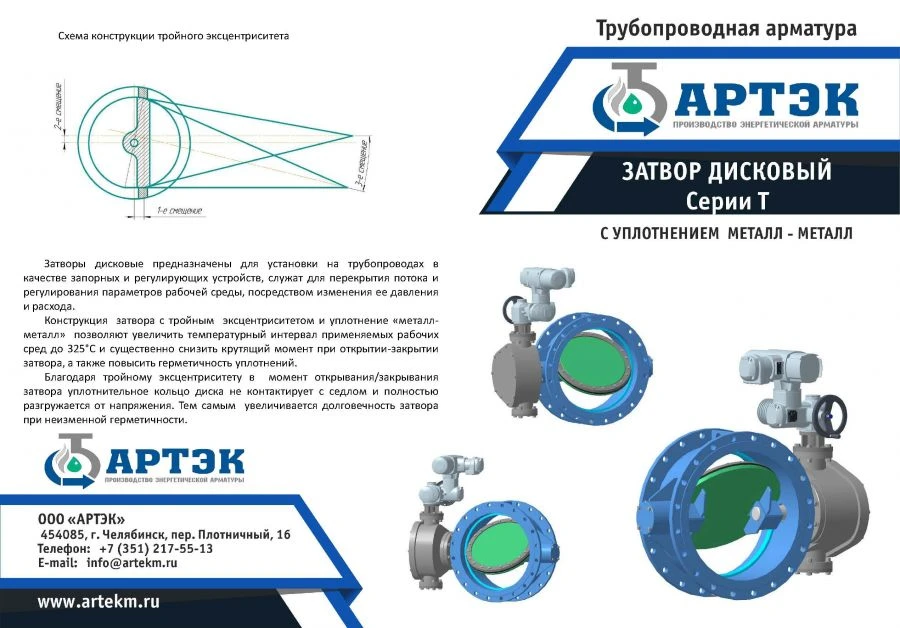

Disc valves are designed for installation on pipelines as shut-off and regulating devices. as shut-off and regulating devices, they serve for shutting off the flow and regulate the parameters of the working medium by changing its pressure and flow rate. The gate design with triple eccentricity and "metal-to-metal" sealing allow to increase the temperature interval.

metal" sealing allows to increase the temperature range of applied working media up to 325°C and significantly reduce the temperature range of the valve. media up to 325°C and significantly reduce the torque during opening-closing of the valve. The triple eccentricity and metal-to-metal seals allow to increase the temperature range of the operating media up to 325°C and significantly reduce the opening-closing torque and increase the tightness of seals.

Due to triple eccentricity at the moment of opening/closing of the gate During opening/closing, the sealing ring of the disc is not in contact with the seat and is completely stress relieved. is completely relieved of stress. This increases the life expectancy of the plug.

at constant tightness.
