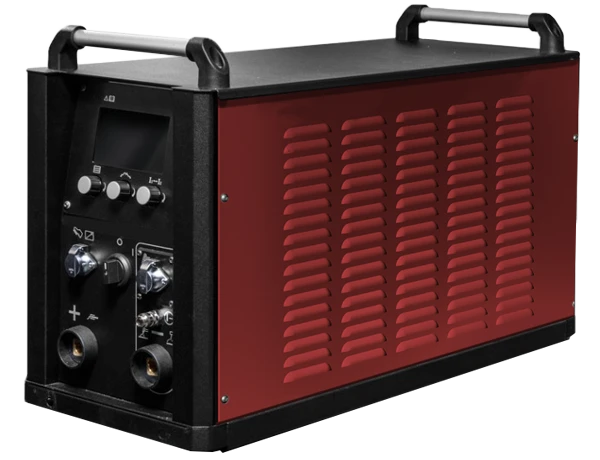

ROSWELD TIG 400 P DC. Direct current argon arc welding machine

Electric Welding Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Industrial inverter welding machine with welding parameters software for direct current argon-arc welding of steels, titanium, copper-containing alloys at currents up to 380 A inclusive in 100% argon. It supports all types of pulse welding, welding with high-frequency modulation, various control algorithms, contact/non-contact ignition and so on.
It has a modular design of the power part and provides: IP 34, PV 100% at maximum current in the temperature range -40...+40° C, efficiency 96%. The control tact of welding arc parameters is 6.6 µs.
Complete with a system of remote control and documentation of parameters PAK WeldWeb..

Specifications

Type of product according to PP RF 616 Arc welding equipment;

Minimum welding current 3 A

Rated welding current 380 A

Operating voltage 380 V

Weight 43.4 kg

Mains frequency 50...60

Manual arc welding 20-350 ?

argon-arc welding 3-380 ?

No-load voltage 93 V

Maximum power consumption, kW 16

Width 300 mm

Dimensions 740x300x460 mm

Mark rosweld

Equipment power source, autotig cold wire feeder, liquid cooling unit for bjo tig torch, cylinder cart, welding torch, ground cable, cable package, weld web remote parameter control system.

Load Duration (LL) 100 %

Type of welding voltage regulation unregulated

AC mains supply voltage 300...500 V

Type of welding current permanent

Maximum welding current 380 A

Height 460 mm

Length 740 mm

Operating modes (continuous/pulse) pulsed and short-pulsed

EFFICIENCY 96 %

Insulation class ?

Degree of protection ip 34

Current intensity at 100% SP 380 A

Cos f 0,99

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
