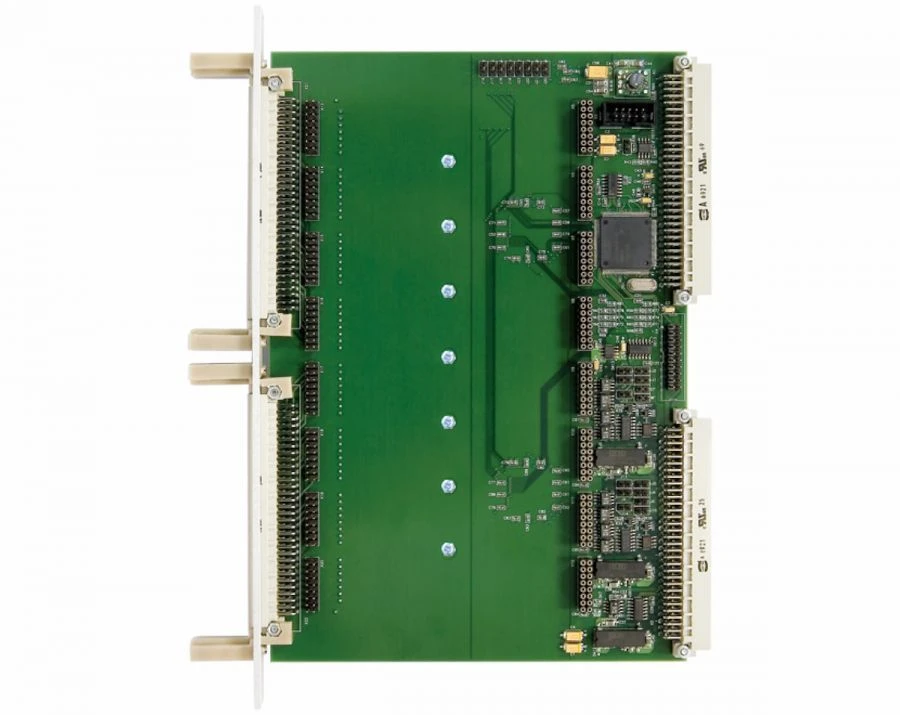

RMS carrier module M11

M11 is designed for input/output of discrete and analogue signals in systems with serial interfaces CAN or RS485, by installing on it input/output modules-mesonins. Format-6U/Euromechanics; Number of I/O channels up to 64; Intermodule interface-CAN or RS485/422; Number of installed mezzanines up to 8; Number of programmable 24-bit counters/timers-4; Number of interfaces-CAN 2; Number of interfaces RS485/422-2; Connection of external lines-sockets on the front panel. The module is designed for operation as part of on-board equipment of automatic and automated control systems operating in difficult operating conditions.
The manufacturer guarantees the conformity of the product quality to the requirements of technical specifications if the customer observes the conditions and rules of storage, transportation, installation and operation, established by the technical specifications and operational documentation.
Warranty storage period is 10 years from the date of manufacture.
