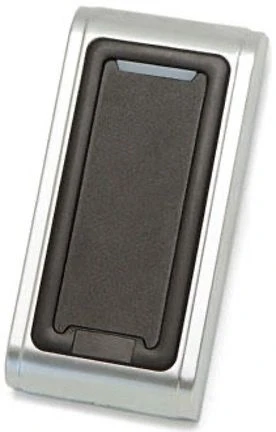

RFID Reader 125 kHz for Proximity Cards - Model Matrix-IV (E HT Metal)

Available for Import

RFID Reader 125 kHz for Access Control Systems - Matrix-IV (E HT Metal)

Electrical Interface Devices

Manufacturer: OTK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed to read serial numbers of identifiers (proximity cards, key fobs) standards EM-Marine, HID ProxCardII (HID 1326) and Atmel 5557 (Temic) in access control and management systems (ACS). The read code is transmitted to the controller via iButton (Dallas Touch Memory) or Wiegand 26(42) protocols. The reader supports simultaneous operation with cards such as EM-Marine and Temic (installed factory firmware reader) or HID ProxCardII and Temic (special firmware).

Specifications

Operating frequency

125

Type of identifiers used

EM-Marine, HID ProxCard II and Atmel 5557(Temic)

Defining the card standard

Automatic, without additional settings

Reading range

EM-Marin, Atmel 5557(Temic) - 4 cm HID ProxCard II - 2.5 cm

Output interface

Ibutton (Dallas Touch Memory), Wiegand-26(42)

Maximum line length from reader to controller: Dallas Touch Memory

No more than 15 m

Maximum line length from reader to controller: Wiegand

Not more than 100 m

Light and sound indication

Got it

External control of LED and sound

Got it

DC supply voltage

B1/B8 2100/900 MHz V

Maximum current consumption

150 mA

Dimensions

120x58x20 mm

Housing material

Silumin, plastic

Operating temperature

-40...50 °C

Weight

500 year

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
