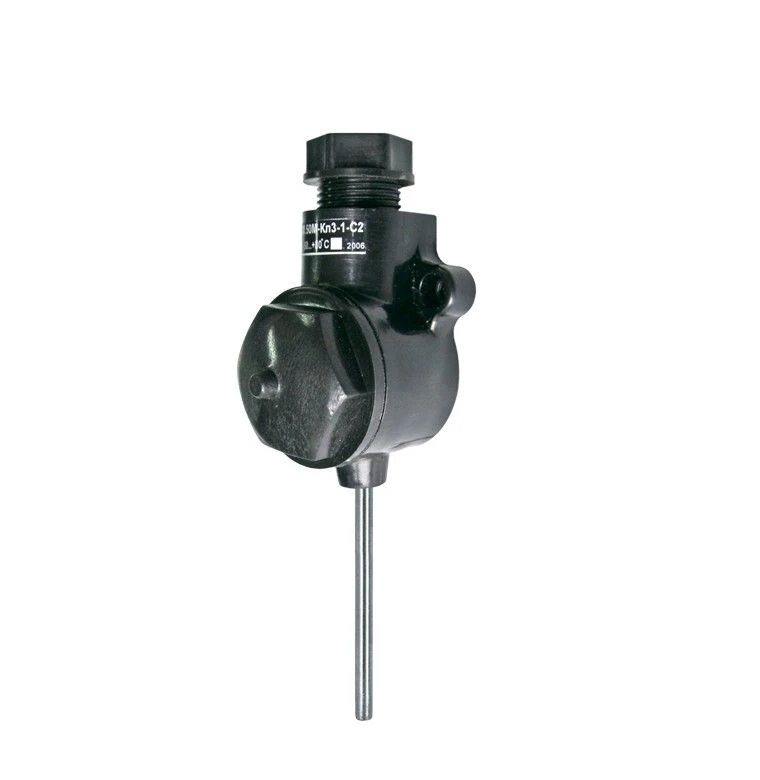

Resistance thermocouple ???? (????)-Cl3-1

Resistance thermocouples with a sensitive element made of platinum TSPg or copper TSMg, design version Kl3-1 are designed to control the temperature of air and non-aggressive gases. The sensor is designed for indoor or outdoor installation, also used in heating and air-conditioning systems (HVAC). GOST6651. Thermal converters are designed for operation at ambient air temperature from minus 60 to plus 85 C (TSP) and from minus 50 to plus 85 C (TSM), relative humidity up to 95% at 35 C and atmospheric pressure from 84 to 106 kPa. Thermal converters are made in climatic version UHL 3.1 according to GOST 15150-69. By degree of protection against dust and water penetration thermal converters correspond to IP 54 according to GOST 14254-96. According to the method of protection against electric shock thermal converters are made as a product of III class according to GOST 12.2.007.0-75. Do not expose thermal converters to shocks and falls.
