Resistance Temperature Detector TCMr (TSPr)-K9

Available for Import

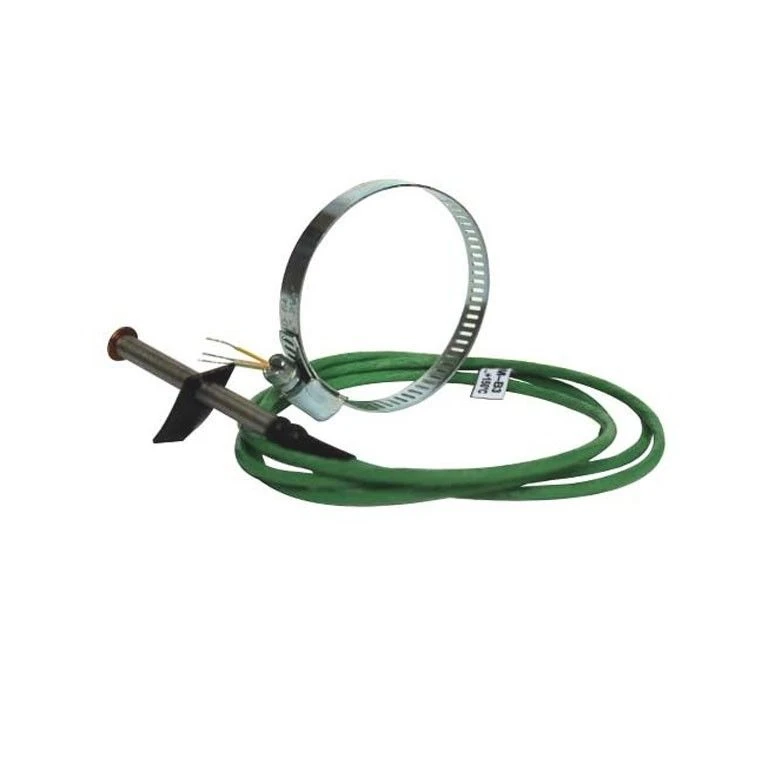

TCMr (TSPr)-K9 Resistance Temperature Detector for Surface Temperature Measurement

Temperature Measurement Devices

Manufacturer: RELSIB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Resistance thermocouples with sensitive elements made of platinum TSPg or copper TSMg, design version K9 are designed to measure the surface temperature of pipes of various diameters from 10 to 120 mm. GOST6651. Thermal converters are designed for operation at ambient air temperature from minus 60 to plus 85 C (TSP) and from minus 50 to plus 85 C (TCM), relative humidity up to 95% at plus 35 C and atmospheric pressure from 84 to 106 kPa.

Specifications

Connection diagram

2-wire (Pt1000, 50M); 3-wire

Rated static characteristic (RSC)

50M; Pt100; Pt1000

Thermal converter type

M-copper; P-platinum

Length of mounting part

60 mm

Diameter of the mounting part

5 mm

Temperature measurement range

-50...180 °C

Clamp diameter

120 mm

Connection cable length

600 cm
