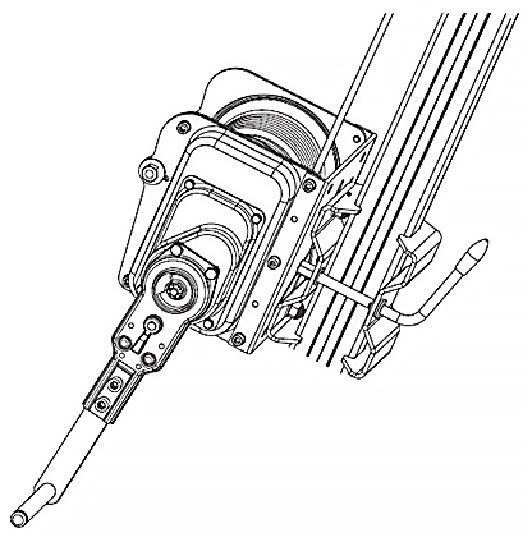

Rescue Lifting Device for Efficient Evacuation and Safety - HS-W503

The winch is an element of the rescue and evacuation system. It is a rescue lifting device of class B and is designed to lift a person to a distance of up to 35 metres. It is used in a set with a tripod.

It has an additional manual descent function designed for lowering a person up to 2 metres. It is a component of a rescue and evacuation system. -Maximum working load: at least 250kg.

-Required hand force: 10kg. -Gear ratio: 7: 2:1 -Handle length: 300 mm. -Cable diameter: 6.3 mm.

-Rope diameter: 60 mm. -Cable length: 35 metres. -Weight: 24kg.

-Material: galvanised steel. -Equipped with automatic brake mechanism. -Equipped with spring shock absorber.

-Includes operating and inspection manual. Certificate of Conformity: TR CU 019/2011. Usage temperature: -50°C to +50°C.

Static strength: 15 kN. Warranty period: 4 years from the date of commissioning....
