Remote Start Device for Fire Safety Systems UDP 513-4-B (RO-R ASPZ) Available for Import

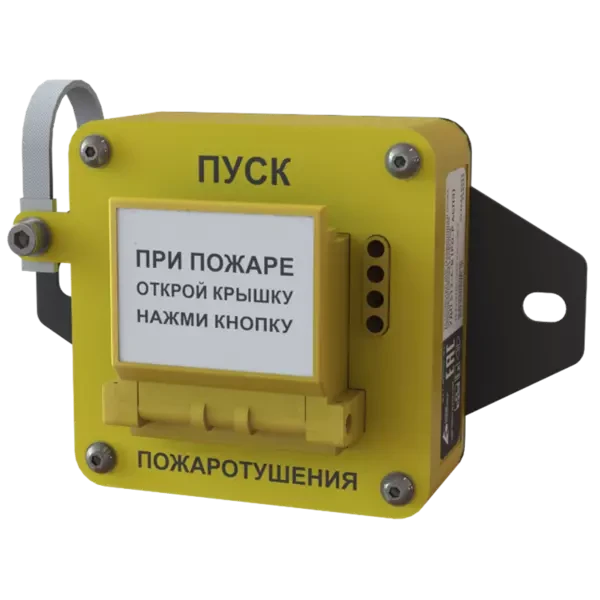

Remote Start Device for Fire Safety Systems - UDP 513-4-B (RO-R ASPZ)

Fire Safety Devices
Manufacturer: SPBEX-MINING LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

UDP 513-4-B (RO-R ASPZ) is designed for manual start of fire protection systems (fire extinguishing, smoke removal, notification, internal fire water supply, etc.) via wireless radio interface of IEEE 802.15.4 standard with the use of the device receiving and controlling and fire control.

Specifications

Explosion protection marking
RO Ex ia I Ma
Operating temperature
-20...60 °C
Degree of protection against external influences
IP65
Protection class against electric shock
III
Power supply
Battery ER14505 "EEMB", ER14505 "EVE", ER14505H "Fanso "*
Battery type
Li-SOCl2
Number of batteries
2 pcs (main and backup)
Rated battery voltage
3.6 V
Rated battery capacity
2.4
Power consumption, max.
0.5 W
Operation time in standby mode from the main battery, not less than
NZ-150-14,5
Connection interface
Wireless radio interface IEEE802.15.4
Maximum output power of IEEE 802.15.4 transmitter, max.
2.5 mW (4 dBm)
Drive element
With magnet, separate from switch compartment
Return to the "MODE" mode
By means of a special spanner
Overall dimensions
110x180x71 mm
Weight, not more
1.5 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
