Available for Import

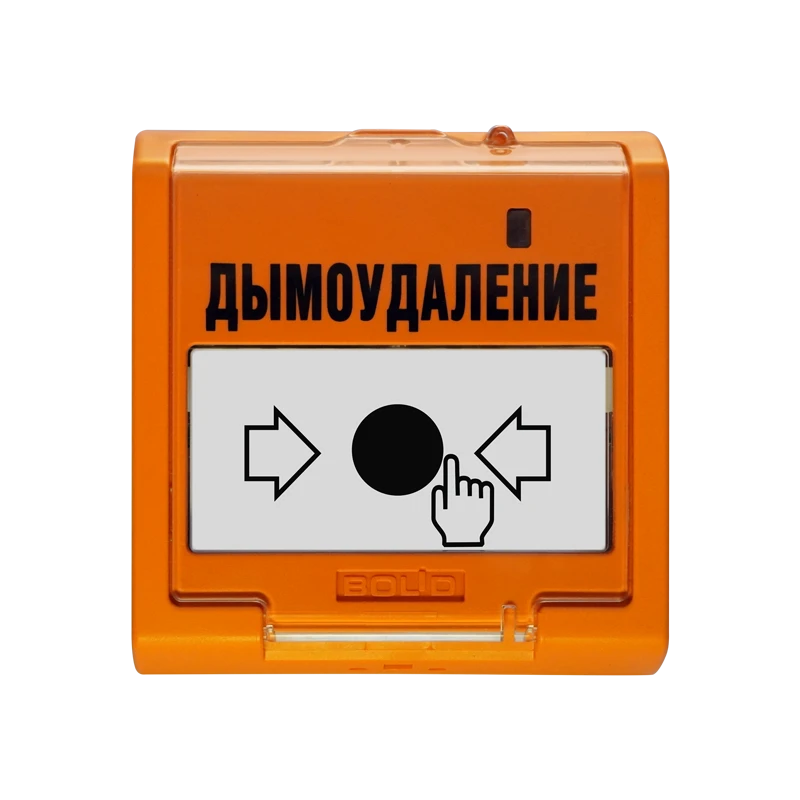

Remote Start Control Device for Smoke Extraction Systems - UDP 513-3M Version 02
Manufacturer:
BOLID CJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
It is used for manual start of smoke exhaust systems. It works in the alarm loop of the following control and monitoring units: S2000-4, Signal-20P, S2000-ASPT, Signal-10, Signal-20M or similar, providing the loop voltage up to 30 V and limiting the loop current at the level of no more than 25 mA. Functions: monitoring the state of the key; transmission of notices to the receiving and control unit (device); indication of operating modes (the state of the key) on the built-in light indicator.
Specifications
Maximum power supply voltage
max. 30 V
Rated supply voltage
24 V
Consumption current in standby mode
max. 50 µA
Switched current
max. 25 mA
Maximum active resistance of alarm loop wires
Not more than 100 ohms
Minimum insulation resistance between the wires of the alarm loop
at least 50 kOhm
Protection degree of the shell according to GOST 14254-2015
IP40
Operating temperature range
-30 to +55 °C
Overall dimensions of the device
max. 95x91x34 mm
Instrument weight
max. 0.2 kg
Average lifetime of the device
10 year
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
