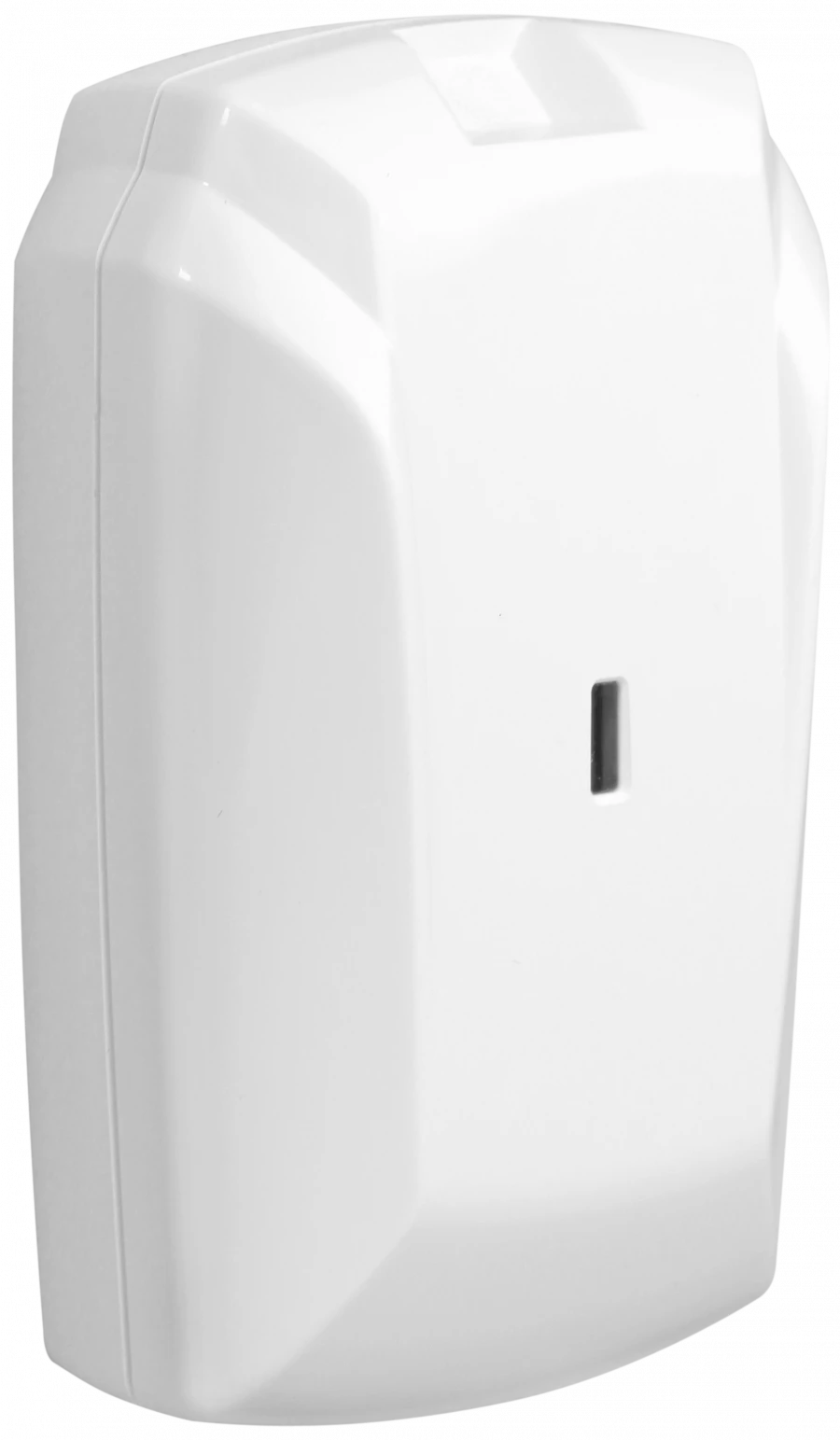

Remote Control Receiver "RPU Astra-R" for Electric Mechanisms

Security System Accessories

Manufacturer: NTs TEKO CJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Radio-receiving device "RPU Astra-R" is designed for remote control of electromechanisms (barriers, automatics and other power equipment) by triggering the built-in relay RPU for a programmed time (from 2 s to 30 min) or with state fixation when receiving a signal from the registered keyfobs RPU Astra-R. Range 433 MHz, range 300 m, 1 power relay 250 V / 1 A, control 99 keyfobs, built-in antenna, the possibility of connecting an external antenna.

Specifications

Radio range in open terrain

300 m

Radio operating frequency

434.62

Power supply voltage

10.5...15 V

Consumption current, not more than, mA

Maximum AC voltage switched by relay contacts at 1 A load current

250 V

Maximum DC load at 30 V for terminal NO

5 A

Maximum DC load at 30 V for NC terminal

3 A

Overall dimensions

101x63x32 mm

Operating temperature

0...50 °C
