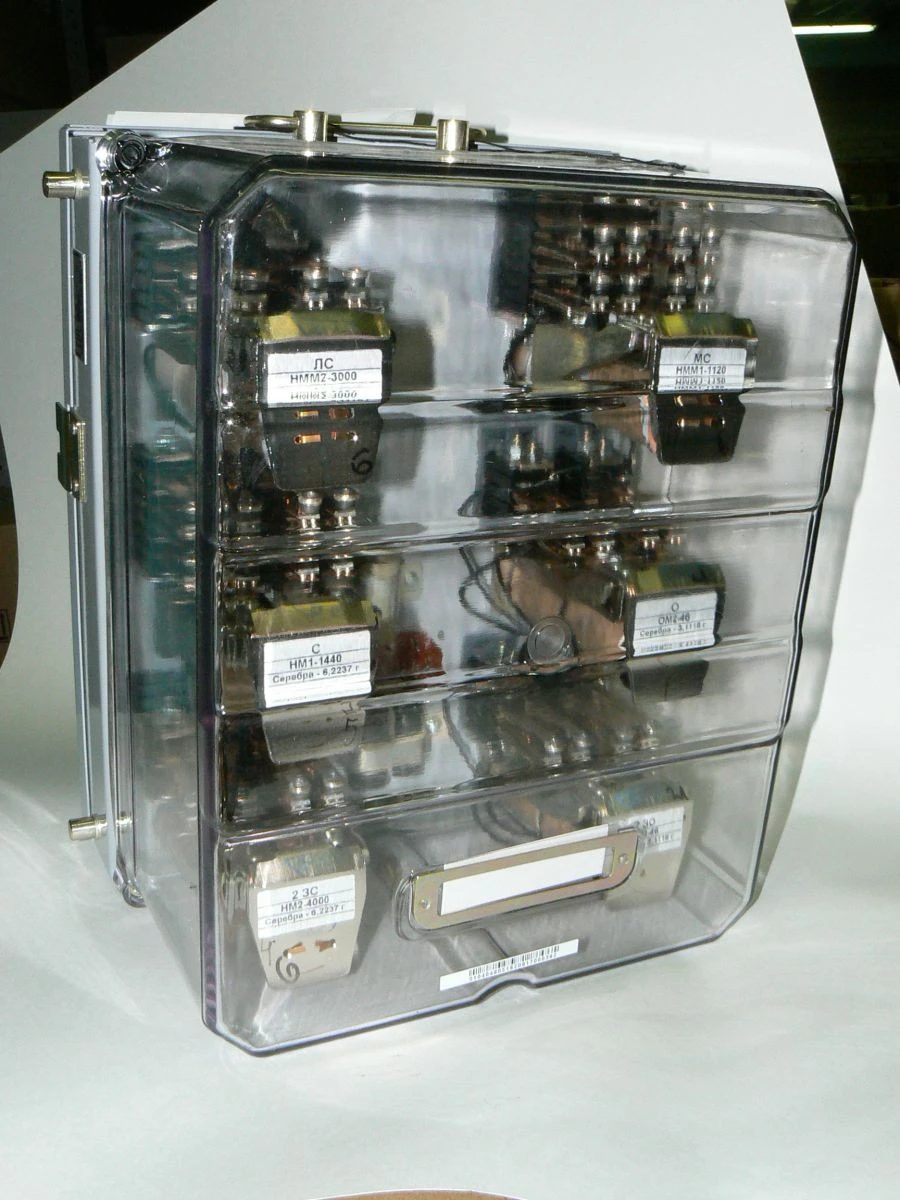

Relay unit of electrical centralisation MII. drawing ?14040.00.00.00B-03

Low Voltage Relays

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Electrical centralisation relay unit MPU-69. drawing No. 15139.00.00A Relay unit of electrical centralisation UP-65. drawing ?14051.00.00.00B Relay unit of electrical centralisation P-62. drawing ?14052.00.00.00B Relay unit of electric centralisation VD-62. drawing ?14047.00.00.00B-03 Relay unit of electrical centralisation MIII. drawing ?14041.00.00.00B-03

Relay block of electric centralisation VI. drawing ?14044.00.00.00B-03 Relay unit of electrical centralisation MI. drawing ?14039. 00. 00?-03 Relay unit of electrical centralisation PP. drawing No.14232.00.00B Relay unit of electrical centralisation BII. drawing ?14045.00.00.00B-03 Electrical centralisation relay unit SP-69. drawing No.14050.00.00B

Description

The block is designed for operation as part of the complex of post equipment of electric centralisation and is intended for implementation of circuit dependencies in EC devices. The unit controls the shunting traffic light, standing in a turn with a shunting traffic light of another direction, or a shunting traffic light from a dead end.
Climatic design of the unit is UHL category 4.2 according to GOST 15150-69.
In terms of resistance to mechanical effects, the unit corresponds to the group of operating conditions MC1 according to GOST 32668-2014.
In terms of resistance to climatic effects the unit corresponds to the group of operating conditions K1 according to GOST 32668-2014.
Protection degree of the unit is IP30 according to GOST 14254-2015.
By the method of protection of a person from electric shock the unit belongs to class 0 according to GOST 12.2.007.0-75.
Electrical connection of the unit is made using plug connectors.
The unit includes relays NM1-1440, NMM1-11, NMM1-1120, NMM1-560, OM2-46.

Specifications

Probability of failure-free operation 0,8

Average time to failure 30000

Assigned service life 30 a

Assigned shelf life B1/B8 2100/900 MHz

Completeness MII unit, VBRK unit No.157.1240-00-00, passport No.14040.00.00.00B-03PS, operation manual No.14039.00.00.00BRE

Guaranteed shelf life B1/B8 2100/900 MHz

Warranty period of operation NZ-150-14,5

Size Length - 275±2.0 mm; Width - 225±1.5 mm; Height - 342±2.0 mm

Method of attachment Mechanical

Weight 13.7 kg

Designation 14040.00.00?-03

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
