Reinforced wall-mounted distribution cabinet SHRNu-V-25U-600x1300x550RT1

Telecom Equipment Components

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

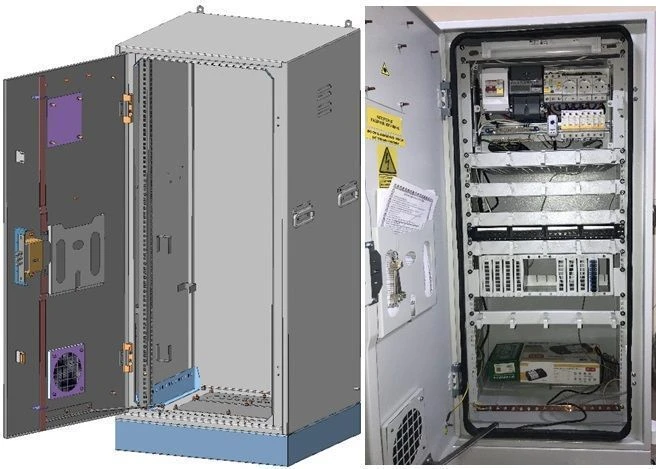

ShRNU-V-25U-600x1300x550RT1 Wall-mounted distribution cabinet reinforced, size 19" - 27U, overall dimensions ????????= 600?1300?500. Type 1. IP54
The product (hereinafter referred to as SHRNu) is a vandal-proof telecommunication cabinet designed to accommodate active telecommunication equipment or in-house technical means of security systems, control and management of engineering equipment and resource consumption metering, as well as for installation of intercom, telemetry, video surveillance, WiFi equipment.
The cabinet is designed for installation of the following equipment: power supply system complete with network voltage stabiliser, life support system of the cabinet, electricity meter, monitoring system, optical cross-country and other related equipment.

Specifications

Second characteristic digit of the degree of protection designation 1

Type of floor support no

Type of coloring Powder

RAL color 7035

Material Cold-rolled steel

Material thickness 1.5 mm

Upper limit of operating temperature 40 °C

Resistance to mechanical external influencing factors (EIF) according to gost 17516.1-90 (IEC 721-3-3-87) - m42

Resistance to mechanical (BBF) effects according to iec 62262 class ik08

Type of accommodation floor/hanging indoors

Height, U 25

Operating temperature range 0...40 °C

Device type Reinforced wall-mounted distribution cabinet

Height/story (unit) 25

Form factor (rack-mounted, freestanding) freestanding

Depth 500 mm

Protection class IP54

Weight 52 kg

Height 1300 mm

Width 600 mm

Availability of fasteners to the support (pole) Armoured glass

Type of accommodation In the room for surface mounting

Type of construction All-welded

Height , U 25

Usable depth 550 mm

First characteristic digit of the degree of protection designation 3

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
